3″ 1502 Cross fitting (3xM Wing, 1xF Thread) with integrated ½” NPT Tap, rated for 10000 PSI Sour Service. Made from NACE compliant materials for reliable high-pressure, higher-flow performance with monitoring access in H₂S environments.
Delivery and return
Delivery and return
For Return/Refund Please see here.
SECTION 1 – ORDER PROCESSING TIMES
Orders typically take 1 – 2 business days to process before the order is released to the warehouse. This excludes weekends, holidays, and all other non-working days. Orders placed after 13:00 CST will be processed the next business day.
If immediate order and pickup is required, please call us at
(405) 666-5011 to speak with a technical sales representative or e-mail at seo@blazess.com
Due to rapidly fluctuating inventory levels, some items from your order may be partially or completely out of stock. Upon receipt of your order, we will notify you of any stock shortages and advise the lead time for the out of stock items. Typically, the manufacturing lead times will be less than 1 week for common products and 1-2 weeks for limited stock uncommon products.
SECTION 2 – LOCAL PICK-UP
Local pickup is available Monday – Friday during regular business hours. An email will be sent when your order is ready for pick up and will include the contact detail for the local warehouse. You must call in advance to schedule a time for pickup as most products require handling equipment to load.
After hours pickup can be scheduled in advance if required, please call or email to make arrangements.
Please note that due to the vast number of products offered, your chosen pick up location may not have enough stock at the time of order. Upon receipt of your order, we will notify you of any stock shortages for the local warehouse and advise the lead time for the back ordered items. Typically, the lead times will be less than 1 week if the products are in stock at other locations.
Pickups will be scheduled once all products are in stock at the local warehouse. However, split order pickups can be arranged upon request.
Local pickup is available at the following locations:Houston
Houston - 27381 Midline Rd, Cleveland, TX 77327
Oklahoma - 512 N Morgan Rd, Oklahoma City, OK 73127
North Dakota - 2000 50th St W #4, Williston, ND 58801
Odessa - 12511 W. Interstate 20, Odessa, TX 79766
Dubai, U.A.E. - Street no. N506, Ware house Unit#WT01-FB06|Jebel Ali Freezone (North JAFZA) Dubai
Shipping Information
Shipping Information
SECTION 3 – LOCAL DELIVERY
Local delivery is available Monday – Friday during regular business hours.
An email will be sent when your order is processed with a date and time for the delivery. You must ensure safe access for the delivery and all required equipment and personnel are available as most products require handling equipment to unload.
After hours delivery can be scheduled in advance if required, please call or email to make arrangements.
Please note that due to the vast number of products offered, your local warehouse may not have enough stock at the time of order. Upon receipt of your order, we will notify you of any stock shortages for the local warehouse and advise the lead time for the back ordered items. Typically, the lead times will be less than 1 week if the products are in stock at other locations.
Deliveries will be sent once all products are in stock at the local warehouse. However, split deliveries can be arranged upon request.
SECTION 4 – SHIPPING COLLECT / CUSTOMER ACCOUNT
In most cases, we can ship collect, you may arrange your own carrier/pickup or have us ship using your established carrier account.
SECTION 5 – DOMESTIC SHIPPING
After placing your order, we'll find the optimal shipping solution for you, balancing speed and cost. You'll be notified of the final shipping charges via email, Post your confirmation Order Will be Shipped.
SECTION 6 – INTERNATIONAL SHIPPING
After placing your order, we'll find the optimal shipping solution for you, balancing speed and cost. You'll be notified of the final shipping charges via email, Post your confirmation Order Will be Shipped.
SECTION 7 – PACKAGING
- Manufacturers standard packaging and palletizing included
- Special requirements for export packaging, crating, bracing, preservation, etc. are NOT included. Please contact us with any special packaging requirements.
- Assemblies which are meant to be dismantled shall be dismantled into the smallest sizes to optimize freight costs and time.
SECTION 8 – SHIPPING EXCEPTIONS AND CLARIFICATIONS
- Over dimensional and/or overweight packages are not included in the shipping rate schedules
- Import fees, taxes and tariffs and any other import or taxes costs are the responsibility of the customer unless otherwise agreed to in writing.
- No guarantees for shipping, delivery times, processing times are implied or warranted.
- Some areas, regions or countries may not be eligible to place orders due to trade restrictions, embargos or other governmental restrictions.
- We will do our best to manage the shipping costs within our stated rate schedule, however, some orders due to their composition and destination may require special handling. In these cases, one of our team will contact you do discuss shipping solutions.
Composition and care
Composition and care
Composition & Care for Oilfield Equipment
Our oilfield equipment is manufactured from high-quality, forged, and heat-treated alloy steel, ensuring exceptional durability, corrosion resistance, and performance under extreme conditions. Each component is precision-engineered to meet or exceed API 6A standards, guaranteeing safety, reliability, and long service life in demanding oilfield operations.Care & Maintenance:
- Use Only Specified Seals & Components – Always use recommended gaskets, seals, and replacement parts for optimal performance and leak prevention.
- Regular Inspection – Check for wear, corrosion, and pressure integrity to ensure continued safety and efficiency.
- Proper Handling & Storage – Store in a clean, dry environment, and avoid exposure to extreme weather when not in use.
- Routine Lubrication – Apply approved lubricants to threaded and moving parts to prevent friction damage and ensure smooth operation.
- Follow Manufacturer’s Guidelines – Adhere to recommended pressure ratings and installation procedures to avoid equipment failure.
- For best performance and safety, always use genuine products and expert-recommended accessories supplied by Blaze Sales & Service.
Description

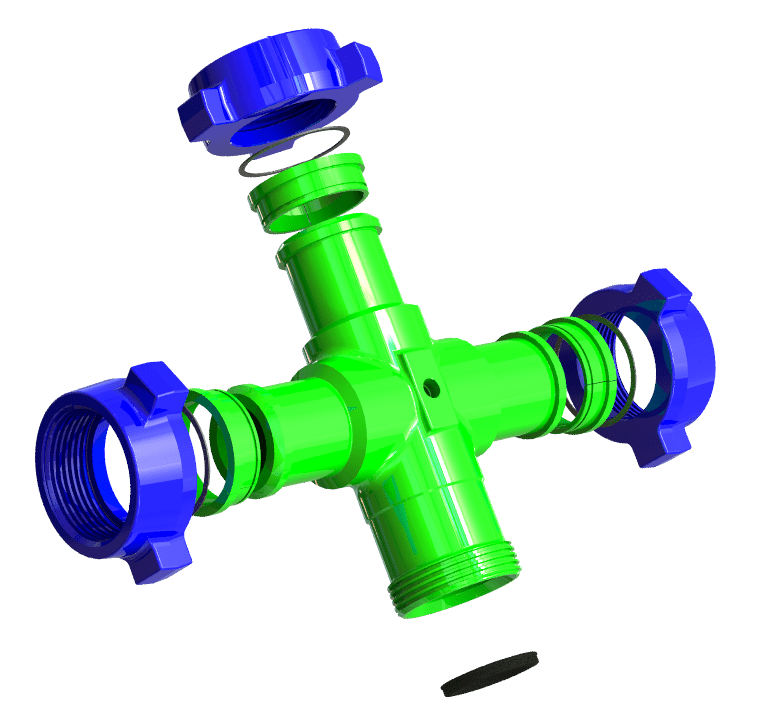

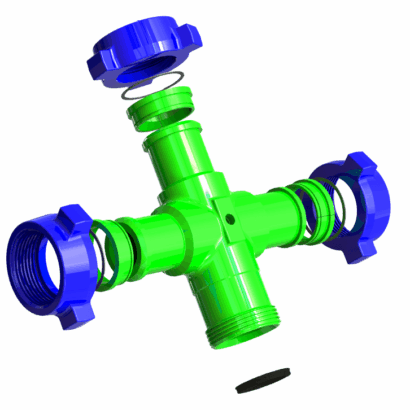

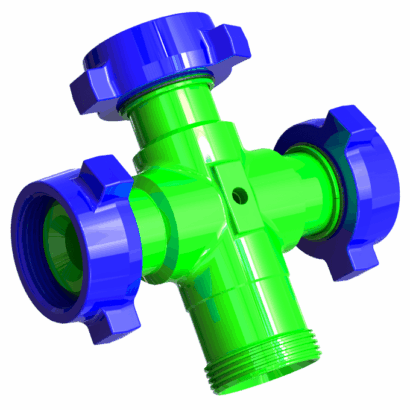

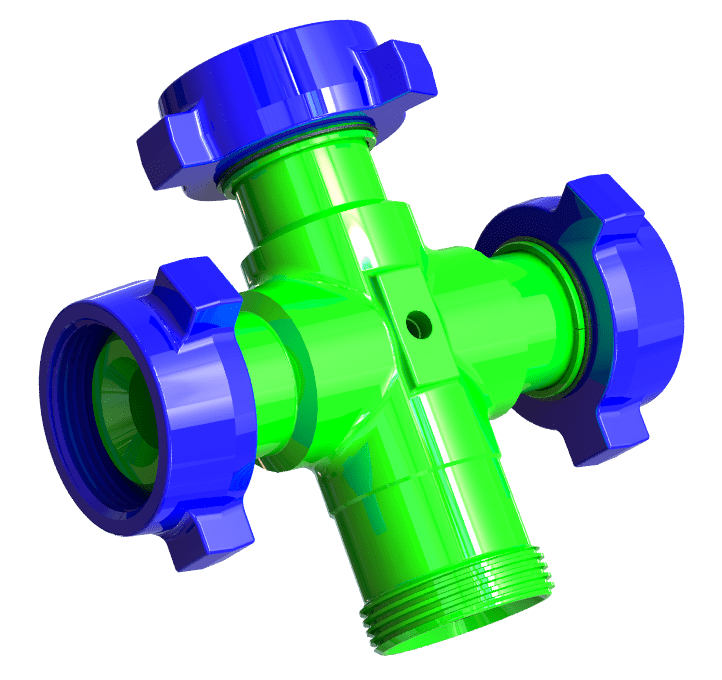

Cross ,3″ 1502 M (wing ) x M (wing ) x M (wing ) x F (thread) 1 /2″ NPT TAP, SOUR ,10000
For critical high-pressure oilfield operations in sour gas environments requiring both the capacity for increased flow and integrated monitoring or auxiliary access, our 3″ 1502 Cross provides a robust and reliable solution. Featuring a configuration of three Male Wing (M) connections, one Female Threaded (F) connection, and a conveniently integrated ½” NPT tap, this cross is engineered specifically for “Sour Service” applications. Rated at a dependable 10000 PSI, it delivers essential connectivity and enhanced functionality in corrosive high-pressure conditions at a larger size.
Crafted from high-strength alloy materials fully compliant with stringent sour service standards (such as NACE MR0175) and precision-machined to the exacting specifications of the 1502 union, this cross ensures safe, leak-free connections capable of withstanding both significant pressure and the corrosive effects of H₂S. The inclusion of the ½” NPT tap provides a secure and reliable port for localized pressure verification, sampling, or the connection of auxiliary low-volume lines, improving operational control and safety in demanding sour service environments.
3″ 1502 Cross fitting (3xM Wing, 1xF Thread) with integrated ½” NPT Tap, rated for 10000 PSI Sour Service. Made from NACE compliant materials for reliable high-pressure, higher-flow performance with monitoring access in H₂S environments.
Features:
- Sour Service Compliance: Manufactured with materials and processes that fully comply with industry standards for sour service environments (NACE MR0175), providing crucial resistance to sulfide stress cracking and corrosion from H₂S.
- 10000 PSI Pressure Rating: Engineered for safe and reliable performance at maximum working pressures up to 10000 PSI, suitable for demanding high-pressure applications in sour fields.
- Higher Flow 3″ Size: Provides increased flow capacity compared to smaller fittings, essential for applications requiring higher volumes at high pressure in sour service.
- Versatile MMMF 1502 Configuration: Features three 1502 Male Wing ends and one 1502 Female Threaded end, offering essential flexibility in designing manifolds and piping systems with this specific connectivity in sour service, facilitating efficient flow paths.
- Integrated ½” NPT Tap: Includes a dedicated, precisely machined ½” NPT female tap, providing a secure and accessible point for installing pressure gauges, sampling valves, or other NPT-compatible instrumentation for localized monitoring or auxiliary functions, enhancing control in corrosive environments.
- High-Strength, Corrosion-Resistant Construction: Built from high-strength alloy materials specifically selected and treated for enhanced durability and superior resistance to the corrosive agents present in sour gas environments, ensuring longevity and reliability.
- Reliable Sealing for Critical Safety: Designed with precision to ensure secure, leak-free connections across all ports, which is paramount for safety and environmental protection when handling fluids containing H₂S under pressure.
- Precision Machining: Guarantees accurate dimensions and mating surfaces, facilitating reliable assembly and consistent performance in the field.
- Trusted 1502 Union Compatibility: Designed for seamless integration and secure mating with other 1502 hammer union components commonly used in sour service applications, ensuring interchangeability and ease of use.
Specifications and Technical Details:
- Product Type: Cross Fitting with NPT Tap
- Size: 3 inch (Nominal)
- Pressure Rating: 10000 PSI (68.9 MPa) Working Pressure
- Connections:
- Three (3) x 1502 Male Wing
- One (1) x 1502 Female Threaded
- One (1) x ½ inch NPT Female Tap
- Service Class: Sour Service (SOUR)
- Material: High-strength alloy steel specifically manufactured and tested for sour service applications, fully compliant with standards such as NACE MR0175 (ISO 15156). (Material Test Reports available upon request)
- NPT Tap Details: The integrated ½” NPT tap is a precisely engineered feature providing a robust, leak-tight port on the fitting. It is rated to the fitting’s full working pressure, allowing for direct and accurate measurement of pressure, convenient extraction of fluid samples, or the connection of low-volume auxiliary lines for injection or control at a vital point in the high-pressure sour service circuit, enhancing operational insight and flexibility without compromising the integrity of the main flow path.
- Compliance: Manufactured under strict quality control processes and designed to meet or exceed relevant industry standards for high-pressure and sour service oilfield equipment, ensuring safety and reliability in H₂S environments.
- End Connections: All 1502 and NPT connections are precision manufactured to conform to their respective industry standards, guaranteeing proper and secure mating with compatible components in sour service applications.
Application:
This 3″ 1502 Cross (M x M x M x F) with ½” NPT Tap, 10000 PSI Sour Service fitting is essential for high-pressure applications in oil and gas environments containing H₂S that require versatile routing, higher flow rates, and localized monitoring or auxiliary access. Typical applications include:
- Sour Gas Production and Gathering Lines: Used in piping and manifold systems handling larger volumes of fluids with H₂S, where monitoring points are needed.
- Wellhead and Christmas Tree Assemblies in Sour Fields: Providing reliable and corrosion-resistant junctions with access for pressure gauges or sampling in sour service well control systems, particularly those requiring 3″ connections.
- High-Pressure Stimulation Manifolds in Sour Environments: Essential for managing high-pressure fluid delivery during fracturing and other stimulation treatments in environments containing H₂S, where localized monitoring or injection via the NPT tap is required at higher flow rates.
- Cementing and Acidizing in Sour Wells: Used in high-pressure fluid delivery systems during well service operations in corrosive sour environments, offering a port for monitoring treatment parameters at a 3″ size.
- Any 10000 PSI System in Sour Service: Applicable wherever a 3″ cross with this specific MMMF 1502 configuration and an integrated NPT tap is required to safely and efficiently manage high-pressure, potentially higher-volume fluids containing H₂S with enhanced monitoring or auxiliary capabilities.
Ensure the safety, integrity, and operational efficiency of your sour service applications with integrated monitoring and increased flow capacity using our dependable 3″ 1502 Cross (M x M x M x F) with ½” NPT Tap, 10000 PSI Sour Service fitting.
Supplied by Blaze Sales and service
Call +1 405 666 5011 or email at seo@blazess.com
