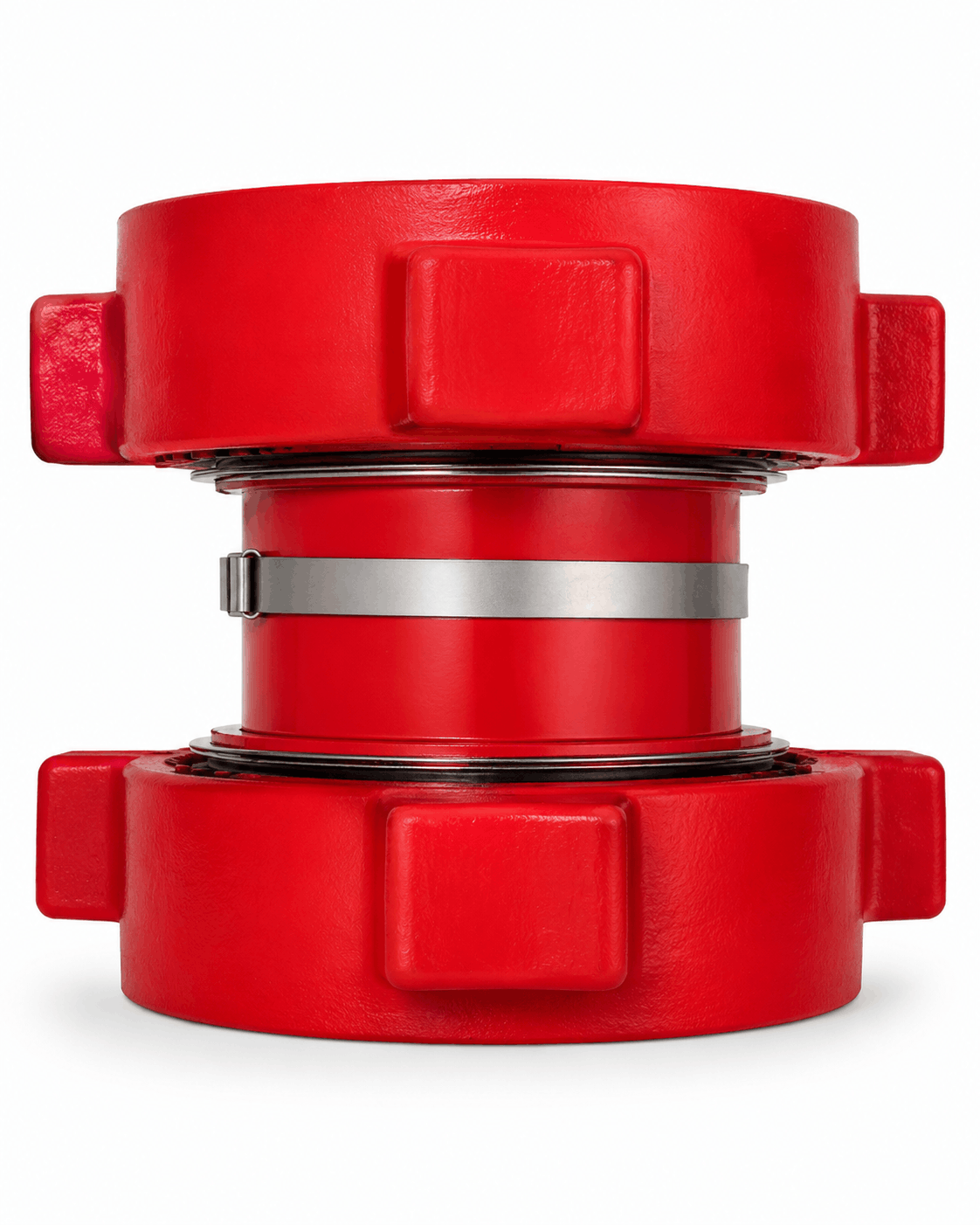

Crossover Adapter – 4" FIG 1002 Male (Wing) x 4" FIG 1002 Male (Wing)

The Crossover Adapter, 4" FIG 1002 Male (Wing) x 4" FIG 1002 Male (Wing), is a heavy-duty, large-bore forged steel flowline component designed specifically to join two female (thread/sub) connections within the same 10,000 PSI piping system. This integral adapter provides field operators with a reliable, high-capacity solution for connecting massive 4-inch 10K iron pieces without restricting the internal flow path or compromising system integrity.

A distinct defining feature of this specific adapter is its Male x Male (Wing x Wing) configuration. Both ends are equipped with heavy-duty FIG 1002 wingnuts, making it an indispensable component for directly mating two female union ends in large-volume manifold layouts. By bridging these female connections directly, this adapter eliminates the need for inserting unnecessary spacer pup joints or fabricating complex workarounds, which significantly reduces the overall rig-up footprint, minimizes potential leak paths, and ensures a streamlined, high-capacity flow rate.

Features & Benefits

• Male x Male Configuration: Features wingnuts on both ends, providing a direct, streamlined solution for mating two female union connections in complex 4-inch large-bore rig-ups.

• Large-Bore 10K Capacity: Maintains a massive, uninterrupted 4-inch flow path rated for 10,000 PSI, ideal for high-volume custom operations without bottlenecking.

• Reduced Leak Paths: Single-piece forged construction replaces hazardous "stacked" configurations or unnecessary pup joints, drastically reducing potential failure points.

• Heavy-Duty Forged Construction: Manufactured from high-strength alloy steel to withstand severe shock loads, extreme vibration, and massive volumes of abrasive fluid flow.

• Fast Field Installation: Dual heavy-duty wingnut ends allow for rapid, secure makeup and breakout on both sides using standard rig hammers.

Specifications & Technical Details

Applications

This Male x Male adapter is widely used in high-capacity, high-pressure surface operations where two female FIG 1002 union components must be directly joined. Typical applications include massive frac iron rig-ups, high-yield well testing packages, large-bore cementing lines, pump discharge manifolds, and general flowback operations requiring high-volume 10K connections.

Quality Assurance

All our adapters are manufactured from premium forged alloy steel and subjected to strict quality control processes. Each fitting undergoes rigorous dimensional inspection and hydrostatic pressure testing prior to shipment to ensure absolute safety, shell integrity, and seal performance under maximum working loads. Full material traceability is available to guarantee compliance with API guidelines.
