1-1/2" Fig 602 Threaded Female Sub – Hammer Union Component

1-1/2" Fig 602 Threaded Female Sub – Hammer Union Component

Versand wird beim Checkout berechnet
Enquire for Price

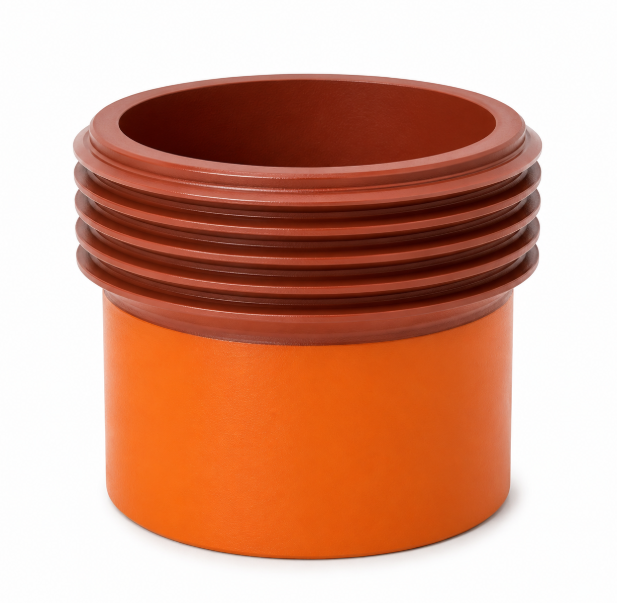

The 1-1/2" Figure 602 Threaded Female Sub is a heavy-duty replacement component engineered for standard 6,000 PSI hammer union assemblies. Designed for medium-to-high pressure fluid routing in upstream and midstream oilfield operations, this female half of the union is meticulously machined to seamlessly mate with standard Figure 602 male subs and wing nuts. It provides a secure, reliable seat for the resilient lip-type elastomer seal that characterizes the Figure 602 design, ensuring bubble-tight pressure containment and protecting secondary metal-to-metal sealing surfaces.

Manufactured from high-strength forged steel, this 1-1/2-inch female sub is built to withstand the rigorous mechanical demands of continuous field service, truck mounting, and manifold operations. The precision-cut female line pipe (NPT) threads allow for fast, straightforward integration onto standard threaded pipework, creating a robust connection point that effectively resists vibration and pressure surges.

Whether utilized for replacing worn components on existing iron or assembling custom manifold flowlines, the 1-1/2" Figure 602 Female Sub delivers dependable performance, rapid rig-up capability, and strict interchangeability with standard industry iron.

Features & Benefits

  • 6,000 PSI Pressure Rating: Engineered to safely manage medium-to-high pressure fluid systems with a 6,000 PSI Cold Working Pressure (CWP) rating.

  • Precision NPT Threads: Features standard threaded ends for quick, secure makeup onto 1-1/2" threaded line pipe.

  • Elastomer Seal Compatibility: Provides a precise seating surface for the Figure 602 lip-type seal ring, ensuring reliable primary sealing and protecting the metal bearing surfaces.

  • Forged Steel Construction: Built from heavy-duty steel to deliver exceptional durability and resistance against mechanical impacts and field handling.

  • Universal Interchangeability: Manufactured to strict dimensional standards to ensure full compatibility and interchangeability with standard Figure 602 male subs and wing nuts.

  • Vibration Resistance: The threaded design combined with the secure Figure 602 union profile ensures steady performance in high-vibration pumping applications.

Specifications & Technical Details

Category Specification
Component Type Hammer Union Female Sub (Replacement Part)
Union Figure Standard Figure 602 (Fig 602)
Nominal Size 1-1/2"
End Connection Threaded (NPT)
Maximum Working Pressure 6,000 PSI CWP
Body Material High-Strength Forged Steel
Service Configuration Standard Service
Typical Applications Mud lines, manifold lines, truck mounting, well servicing

Applications

This 1-1/2" Figure 602 threaded female sub is an essential component for medium-to-high pressure flowline networks. Typical applications include mud and water transfer lines, standard well servicing equipment, truck-mounted pumping configurations, cementing lines, and general manifold piping assemblies where 6,000 PSI pressure containment and fast rig-up times are required.

Quality Assurance

Each female sub undergoes strict quality control protocols, including precision dimensional verification, thread gauging, and material traceability (MTRs), ensuring complete structural integrity, safe pressure containment, and reliable compatibility with industry-standard Figure 602 assemblies.
