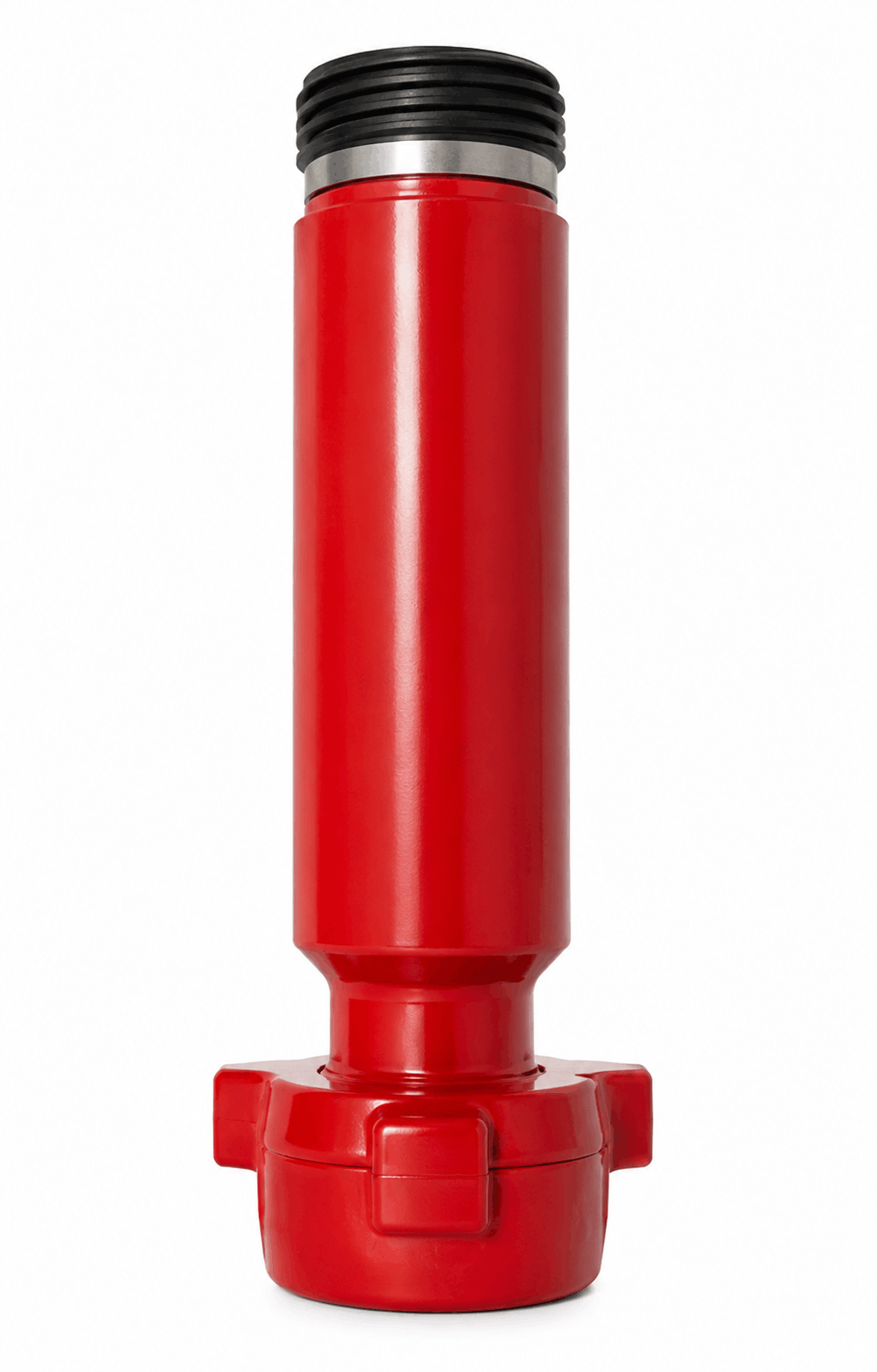

2" 15,000 PSI Fig 1502 MxF Blast Joint (18" Length) – High-Pressure Flowline Fitting

The 2" Figure 1502 Male x Female (MxF) Blast Joint is a heavy-duty, sacrificial flowline component engineered to absorb extreme internal erosion and abrasive wear in high-velocity fluid environments. Rated for a Cold Working Pressure (CWP) of 15,000 PSI (15K), this crucial piece of iron is specifically designed to protect permanent manifold infrastructure, expensive plug valves, and directional elbows from the severe, sand-laden fluids encountered during hydraulic fracturing (frac), cementing, and high-rate flowback operations.

Measuring exactly 18 inches (1.5 feet) in overall length, this blast joint offers a significantly extended wear zone for areas experiencing prolonged and severe turbulence, while also accommodating specific 1.5-foot spacing requirements within complex modular manifold designs. It features industry-standard 2" Figure 1502 hammer union connections—a Male end (integral sub) on one side and a Female end (threaded hub) on the other. Acting as an easily replaceable "wear spool," it is strategically installed in high-turbulence zones where fluids change direction or pass through tight restrictions. By taking the brunt of the erosive forces, the blast joint significantly extends the operational life of the surrounding, more complex flowline equipment.

Manufactured from premium, heat-treated forged alloy steel, this blast joint features an extra-thick wall design that delivers exceptional structural integrity, ensuring safe and reliable fluid containment even as internal wear progresses during aggressive, high-pressure pumping operations.

Features & Benefits

• 15,000 PSI CWP Rating: Safely contains extreme fluid pressures inherent in modern hydraulic fracturing, cementing, and well testing operations.

• Sacrificial Wear Protection: The heavy-walled design absorbs severe internal erosion caused by high-velocity proppants and abrasive slurries, preventing catastrophic washouts in expensive manifold components.

• MxF Fig 1502 Connections: Features industry-standard 2" Figure 1502 Male x Female hammer union ends for rapid, secure integration and quick field replacement.

• Standard 18" Length: The 1.5-foot overall length provides a highly extended internal wear zone to manage sustained fluid turbulence and fits perfectly into precise 18-inch manifold spacing requirements.

• Forged Alloy Steel Construction: Heat-treated for superior tensile strength, impact resistance, and maximum durability against abrasive and turbulent flow.

• Cost-Effective Maintenance: Easily inspected, rotated, and swapped out when worn, minimizing downtime and extending the overall life of the flowline system.

Specifications & Technical Details

Applications

This 18" long 2" Fig 1502 blast joint is strategically deployed in areas of high fluid turbulence where maximum abrasive wear protection is required. Typical applications include installation immediately downstream of frac plug valves, choke manifolds, and directional elbows, as well as on the discharge side of high-pressure cementing and pumping units where heavy proppant-laden slurries or extreme sand production are present.

Quality Assurance

Each blast joint is manufactured to exacting standards under rigorous quality control protocols. The component undergoes strict dimensional inspection, with particular focus on the critical internal wall thickness and the integrity of the hammer union sealing surfaces. All units are fully traceable and undergo high-pressure hydrostatic testing to ensure fail-safe performance and personnel safety at 15,000 PSI.
