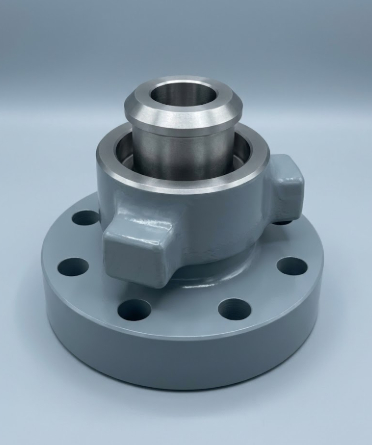

2-9/16" 10M x 2" Fig 1502 Male Wing Flange Adapter – Oil & Gas Flowline Fitting

The Extreme-Pressure Flange Adapter, 2-9/16" 10M x 2" Fig 1502 Male Wing, is a specialized crossover component engineered to provide a rapid, ultra-secure connection between larger API 6A flanged equipment and standard 2-inch hammer union flowlines. Designed for demanding upstream oilfield operations, this size-adapting adapter allows operators to safely step down from a 2-9/16" 10,000 PSI (10M) flanged connection to a standard 2" Figure 1502 hammer union interface. The integrated 2-inch male wing nut ensures fast makeup in the field without the need for specialized tooling, critically reducing rig-up times for high-pressure fluid transfer operations.

Manufactured from heavy-duty forged alloy steel, this crossover adapter is built to endure the harsh, abrasive environments typical of severe well testing, frac support, and high-pressure flow-back. The flanged end conforms strictly to industry dimensional and material standards for a 2-9/16" bore, while the precision-machined 2-inch 1502 male end with its robust wing nut guarantees a highly vibration-resistant, leak-free seal under massive operational pressure loads.

Serving as a vital pressure-control link, this male wing flange adapter optimizes layout flexibility, enabling seamless integration and pipe size reduction between wellhead valving and standard 2-inch temporary flowlines without compromising structural safety.

Features & Benefits

• Rapid Makeup Design: Features an integrated 2" Figure 1502 Male Wing Nut for quick, ultra-secure hammer union connections in the field.

• Seamless Size Transition: Safely steps down fluid flow from a larger 2-9/16" 10,000 PSI flanged asset to a standard 2" 1502 temporary iron configuration.

• 10,000 PSI Rating (10M): Engineered to safely contain extreme high-pressure upstream environments, matching the 10,000 PSI rating of the flanged end.

• Forged Alloy Steel Construction: Delivers exceptional durability against abrasive fluids, high-velocity flows, and severe field handling.

• Vibration-Resistant Sealing: Ensures reliable connection alignment and optimal sealing integrity in high-vibration, high-pressure pumping systems.

• Service Reliability: Manufactured to meet strict quality, dimensional, and material verification standards for standard oilfield service.

Specifications & Technical Details

Applications

This 10M flange to 2-inch 1502 male wing hammer union adapter is essential for extreme high-pressure upstream operations requiring flexible structural crossovers, fast rig-up times, and secure pipe size reductions. Typical applications include stepping down flow from wellhead tree components, high-pressure surface well testing flowlines, severe service flow-back piping, choke and kill lines, and efficiently interfacing larger 2-9/16" 10M flanged wellhead assemblies with standard 2-inch 1502 temporary pipework.

Quality Assurance

Each crossover adapter undergoes rigorous quality inspection protocols, including dimensional checks, precise thread and wing nut gauging, and material traceability verification (MTRs), ensuring reliable and repeatable pressure containment in the most challenging operational field conditions.
