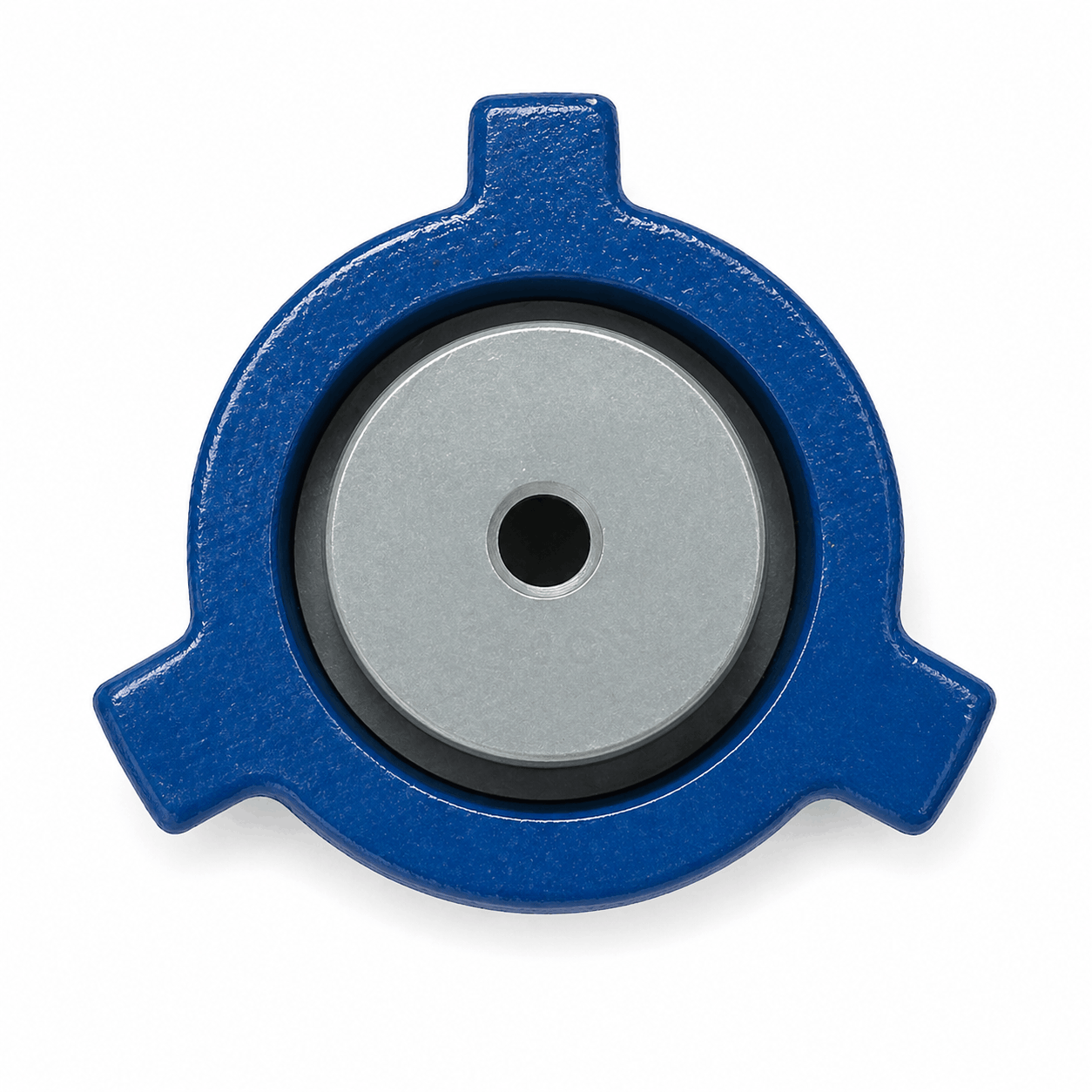

• 3 inch Fig 206 tapped male blind sub with wing nut 1/2 inch NPT rated 2000 PSI for oilfield hammer union flowline, high pressure flow iron fitting for oil and gas equipment
  • 3" 2,000 PSI Fig 206 Tapped Male Blind Sub with Wing Nut (1/2" NPT) – Oil & Gas Hammer Union
1 2

Blaze Sales & Service

3" 2,000 PSI Fig 206 Tapped Male Blind Sub with Wing Nut (1/2" NPT) – Oil & Gas Hammer Union

3" 2,000 PSI Fig 206 Tapped Male Blind Sub with Wing Nut (1/2" NPT) – Oil & Gas Hammer Union

$285.00 USD
$342.00 USD $285.00 USD
Sale Ausverkauft
Versand wird beim Checkout berechnet

The 3" Figure 206 Tapped Male Blind Sub with Wing Nut and a 1/2" NPT port is a highly versatile, medium-pressure closure assembly designed to securely cap off female threaded hubs while providing an integrated access point for critical instrumentation. Rated for a Cold Working Pressure (CWP) of 2,000 PSI, the Figure 206 series is specially designed with a secondary O-ring seal to ensure a bubble-tight, leak-proof connection in systems carrying air, water, oil, or gas.

Manufactured from high-strength forged steel, this complete assembly includes the precision-machined male blind sub (featuring the O-ring groove) and the heavy-duty Figure 206 wing nut. The central 1/2" National Pipe Thread (NPT) tap allows rig personnel to seamlessly install pressure gauges, transducers, or small-bore needle valves directly onto the terminal end of the flowline. This setup enables operators to monitor trapped line pressure or safely bleed off hazardous fluids before breaking the hammer union, maximizing operational safety.

Built to endure the rigors of standard-duty oilfield environments, the 3" 206 Tapped Male Blind Sub ensures robust fluid containment, vibration-resistant sealing, and simplified manifold management.

Features & Benefits

  • Integrated 1/2" NPT Tap: Provides a secure, threaded port for pressure monitoring gauges, sampling equipment, or bleed-off valves.

  • Complete Assembly: Arrives fully equipped with the tapped male blind sub and heavy-duty wing nut for immediate, drop-in field deployment.

  • 2,000 PSI CWP Rating: Specifically engineered for reliable pressure containment in utility, water transfer, and production environments.

  • O-Ring Sealing Technology: Features an integrated O-ring groove on the male sub for superior leak prevention compared to standard metal-to-metal seals.

  • Safe Depressurization: Enables operators to safely vent trapped line pressure before disassembly, reducing the risk of hazardous blowouts.

  • Forged Steel Construction: Delivers high structural integrity and impact resistance to endure repeated make-and-break cycles.

Specifications & Technical Details

Category Specification
Component Type Tapped Male Blind Sub Assembly
Figure Number Figure 206
Size 3"
Pressure Rating 2,000 PSI CWP (2M)
End Connection 3" Fig 206 Male (with Wing Nut)
Tap Size 1/2" Female NPT
Material High-Strength Forged Steel
Seal Type Integrated O-Ring Seal
Service Type Standard Service (Air, Water, Oil, Gas)
Typical Applications Water transfer, gauge mounting, utility manifolds, bleed-off lines
Testing & Compliance Strict dimensional verification and material traceability

Applications

This 3" tapped male blind sub with wing nut is essential for operations requiring secure medium-pressure flowline termination with dedicated instrumentation access. Typical uses include dead-ending female branches on water transfer manifolds while monitoring line pressure, installing bleed-off valves on utility air systems, and providing sampling ports on production gathering lines.

Quality Assurance

Each tapped male blind assembly is manufactured under rigorous quality control protocols. The fitting undergoes precise dimensional inspection, thread gauging, O-ring groove verification, and material testing to guarantee absolute structural integrity and reliable leak-free performance under maximum 2,000 PSI operational loads.
