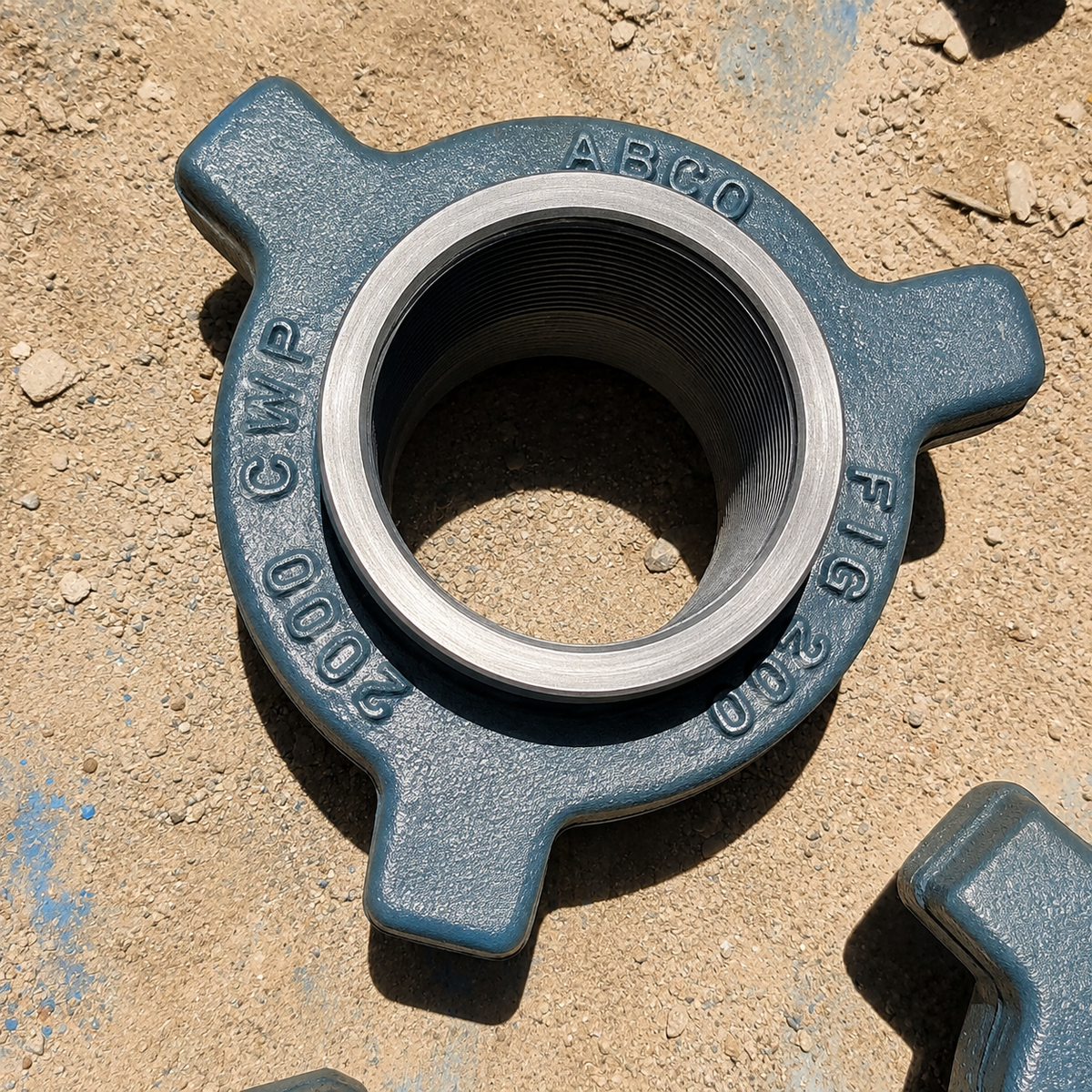

2" Fig 200 Threaded Hammer Union – Low-Pressure Flowline Fitting

2" Fig 200 Threaded Hammer Union – Low-Pressure Flowline Fitting

$99.00 USD
$118.80 USD $99.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

The 2" Figure 200 Threaded Hammer Union is a durable, highly reliable flow control component engineered for general-purpose, low-pressure fluid routing across upstream, midstream, and industrial applications. Rated for a 2,000 PSI Cold Working Pressure (CWP), this robust hammer union provides a fast-makeup, secure connection for standard 2-inch piping systems, making it exceptionally effective for rig utility lines, water transfer, air systems, mud lines, and general low-pressure manifold configurations.

Manufactured from high-strength industrial-grade forged steel, the Figure 200 union utilizes a precision-machined metal-to-metal spherical seating surface between the male and female subs. This streamlined design ensures dependable, leak-free pressure containment without the need for secondary elastomeric O-rings or seals, significantly simplifying field maintenance and extending the operational lifespan of the fitting in standard utility environments. The heavy-duty wing nut allows for rapid, tool-free assembly and dismantling in the field, critically reducing rig-up times for temporary flowlines and routine maintenance operations.

Equipped with precision-cut female threaded ends (NPT / Line Pipe), this 2-inch union allows for secure, vibration-resistant integration onto standard threaded pipework. Serving as a foundational element in low-to-medium pressure fluid management, the 2" Fig 200 Hammer Union delivers structural resilience, cost-effectiveness, and rapid deployment capabilities for everyday field and utility operations.

Features & Benefits

  • 2,000 PSI Pressure Rating: Engineered to safely manage continuous fluid transfer in standard low-pressure systems with a reliable 2,000 PSI Cold Working Pressure (CWP) rating.

  • Metal-to-Metal Sealing: Features a precision-machined conical and spherical seating design that provides a tight seal without the need for secondary elastomer rings, lowering maintenance demands.

  • Rugged Construction: Built from heavy-duty forged steel to withstand general mechanical field handling, harsh weather conditions, and continuous vibration.

  • Threaded Connections: Precision-machined NPT threaded ends ensure a secure, straightforward, and vibration-resistant connection to standard 2-inch threaded line pipe.

  • Rapid Makeup Design: The robust wing nut allows for quick, ultra-secure connections and disconnections in the field, optimizing operational efficiency and saving critical rig-up time.

  • Economical & Low Maintenance: Provides a cost-effective, durable connection for non-critical, low-pressure utility, mud, and water lines by eliminating perishable elastomeric seals.

Specifications & Technical Details

Category Specification
Component Type Hammer Union Assembly
Union Figure Standard Figure 200 (Fig 200)
Nominal Size 2"
End Connection Threaded (NPT / Line Pipe)
Maximum Working Pressure 2,000 PSI CWP
Sealing Mechanism Metal-to-Metal
Body Material High-Strength Forged Steel
Typical Applications Utility lines, water/mud transfer, air systems, low-pressure manifolds

Applications

This 2" Figure 200 threaded hammer union is an essential component for reliable, low-pressure fluid systems. Typical applications include general rig utility lines, standard water and air transfer networks, low-pressure mud lines, pump suction routing, bulk storage tank tie-ins, and general industrial fluid transfer where rapid rig-up and dependable 2,000 PSI containment are required.

Quality Assurance

Each hammer union assembly undergoes rigorous quality control protocols, including precision dimensional verification, exact thread gauging, and full material traceability (MTRs), ensuring complete structural integrity, safe pressure containment, and reliable field performance.
