Double Cushion Elbow – 2" FIG 1502 Male (Wing) x 2" FIG 1502 Female (Thread)

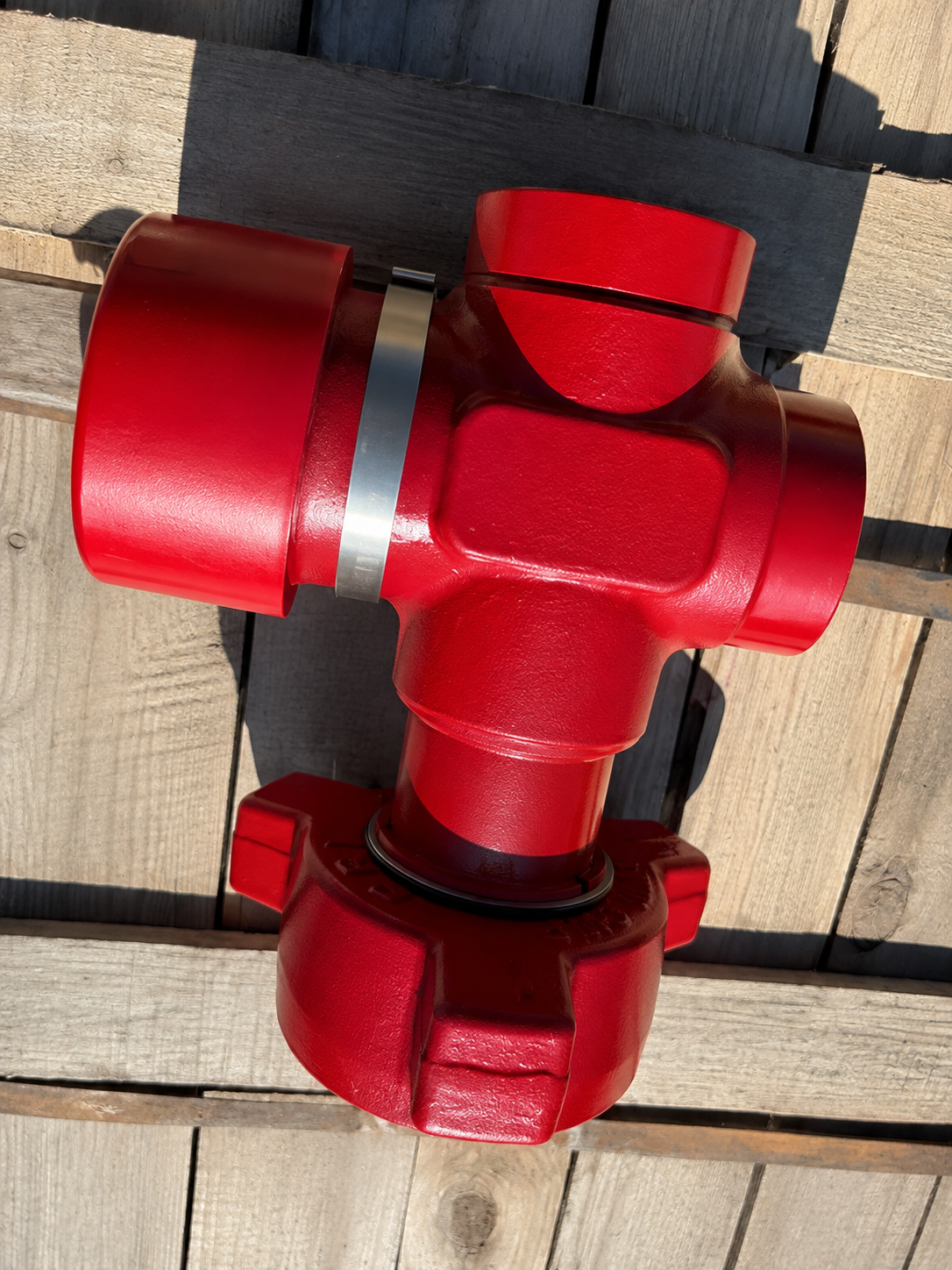

The Double Cushion Elbow, 2" FIG 1502 Male (Wing) x 2" FIG 1502 Female (Thread), is an ultra-heavy-duty forged steel component designed to withstand the severe erosive forces of high-velocity, abrasive fluid streams in 15,000 PSI treating lines. Also known as a target elbow or cushion block, this specialized fitting incorporates an advanced dual-chamber pocket that captures stagnant fluid and sand during operation. This trapped media forms a natural, resilient "cushion" that absorbs the impact of incoming slurry, shielding the outer metal wall from severe abrasive wear.

In high-pressure fracturing, cementing, and high-sand well flowback operations, standard short or long-radius elbows experience rapid wall-thinning due to direct localized impingement. By redirecting the abrasive wear away from the raw steel and onto the trapped fluid layer, the double cushion design drastically extends the operational lifespan of the iron package. This proactive design minimizes the frequency of catastrophic inline washouts, protects personnel, and lowers maintenance downtime.

The 2" FIG 1502 male end features a heavy-duty wing configuration complete with a wingnut for rapid hammer-up installation into treating lines. The opposing 2" FIG 1502 female end provides a precision-machined thread (sub) connection designed to securely seat a standard 1502 male wing profile. Because the single-piece block body is forged from premium alloy steel, the entire assembly maintains an uninterrupted 15,000 PSI pressure capacity.

Features & Benefits

• Dual-Cushion Erosion Protection: Features a specialized dual-chamber target pocket that captures stagnant fluid/sand, creating a protective barrier that eliminates direct abrasive impingement on the outer wall.

• Extended Service Life: Drastically outlasts standard long-radius elbows in high-velocity fracturing, slurry pumping, and high-sand flowback applications.

• Full 15K CWP Capacity: Engineered to operate continuously at extreme pressures up to 15,000 PSI, built for demanding oilfield environments.

• Male x Female Configuration: Equipped with a heavy-duty 1502 male wingnut on one side and a precision-machined 1502 threaded sub on the other for seamless inline integration.

• Heavy-Duty Forged Block Construction: Manufactured from high-strength forged alloy steel to withstand extreme vibration, severe mechanical shock loads, and high flow rates.

Specifications & Technical Details

Applications

This 2-inch double cushion elbow is a critical safety and longevity asset for high-pressure surface operations experiencing high abrasive media concentrations. Typical applications include high-rate well testing and flowback lines, sand separators tie-ins, frac manifold corners, cementing discharge lines, and any flowline geometry change where high-velocity slurries cause premature failure in standard radius fittings.

Quality Assurance

All our double cushion elbows are manufactured from premium forged alloy steel and subjected to strict quality control processes. Each fitting undergoes rigorous dimensional inspection, non-destructive testing (NDT), and hydrostatic pressure testing prior to shipment to ensure absolute safety, shell integrity, and seal performance under maximum working loads. Full material traceability is available to guarantee compliance with API guidelines.
