Crossover Adapter – 3" FIG 1002 Male (Wing) x 2" FIG 1502 Female (Thread) | 7" Length

The Crossover Adapter, 3" FIG 1002 Male (Wing) x 2" FIG 1502 Female (Thread) with a 7-inch length, is a heavy-duty forged steel flowline component engineered to safely and securely connect dissimilar hammer union sizes and pressure ratings. This crucial adapter allows field operators to seamlessly transition from 3-inch 10,000 PSI (FIG 1002) piping systems to 2-inch 15,000 PSI (FIG 1502) flowline iron without compromising structural integrity or sealing performance.

In complex oilfield operations such as fracturing, cementing, and well testing, rig-ups often require mating equipment from different systems and bridging specific gaps. This crossover features an extended 7-inch overall length, providing essential clearance and reach for custom manifold configurations. It eliminates the need to stack multiple fittings or spacer pup joints, thereby reducing the overall footprint, minimizing potential leak paths, and ensuring a streamlined flow rate.

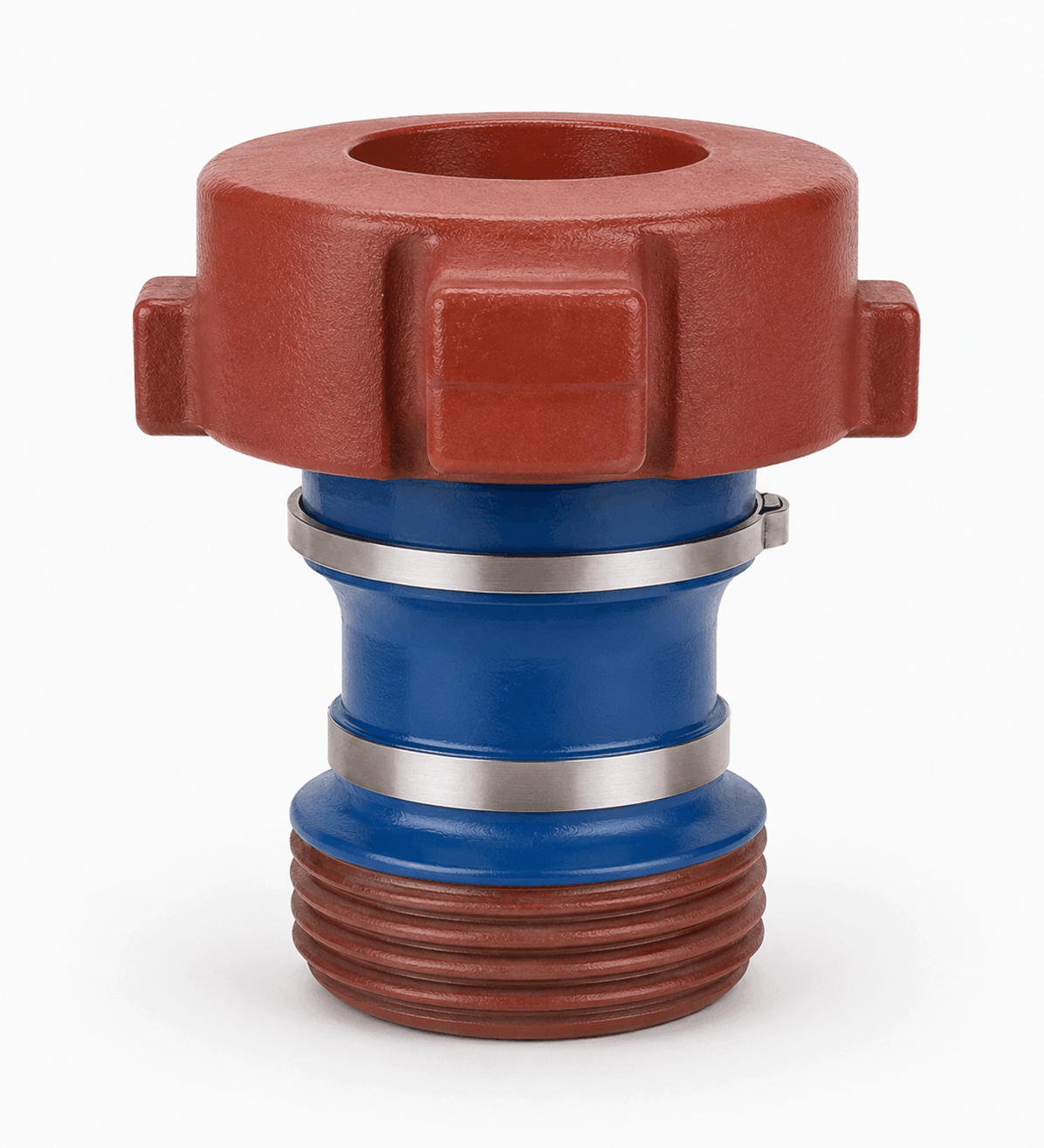

The 3" FIG 1002 end includes a male wing configuration complete with a heavy-duty wingnut for fast, hammer-up installation, while the 2" FIG 1502 end features a precision-machined female thread connection.

Note: While the 2" FIG 1502 connection is nominally rated for 15,000 PSI, the overall working pressure of this crossover assembly is limited by the 3" FIG 1002 connection, resulting in a maximum system pressure rating of 10,000 PSI (10K CWP).

Features & Benefits

• Extended 7-Inch Length: Provides additional reach and clearance, acting as both a crossover and a short spacer to accommodate complex manifold and flowline rig-ups.

• Seamless Transition: Safely connects 3-inch 10K iron to 2-inch 15K iron, providing essential flexibility in the field.

• Reduced Leak Paths: Acts as a single, integral adapter, eliminating the need to stack multiple crossover fittings and pup joints, thereby reducing potential failure points.

• Heavy-Duty Forged Construction: Manufactured from high-strength alloy steel to withstand severe shock loads, vibration, and abrasive fluid flow.

• Fast Installation: The FIG 1002 male end includes a heavy-duty wingnut, allowing for rapid, secure makeup and breakout using standard rig hammers.

Specifications & Technical Details

Applications

This extended 7-inch crossover adapter is widely used in high-pressure surface operations where transitioning between different pipe diameters, pressure classes, and specific gap lengths is required. Typical applications include custom choke and kill manifolds, frac iron rig-ups, well testing packages, cementing lines, and general flowback operations where 3" 10K lines must seamlessly feed into 2" 15K lines.

Quality Assurance

All our crossover adapters are manufactured from premium forged alloy steel and subjected to strict quality control processes. Each fitting undergoes rigorous dimensional inspection and hydrostatic pressure testing prior to shipment to ensure absolute safety, shell integrity, and seal performance. Full material traceability is available to guarantee compliance with API guidelines.
