Crossover Adapter – 3" FIG 1002 Male (Wing) x 2" FIG 1502 Female (Thread) | Sour Service (H2S)

Crossover Adapter – 3" FIG 1002 Male (Wing) x 2" FIG 1502 Female (Thread) | Sour Service (H2S)

$514.00 USD
$616.80 USD $514.00 USD
Sale Sold out
Shipping calculated at checkout.

The Crossover Adapter, 3" FIG 1002 Male (Wing) x 2" FIG 1502 Female (Thread) for Sour Service, is a specialized, high-pressure flowline fitting designed to bridge the gap between dissimilar hammer union sizes and pressure ratings in hazardous, corrosive environments. This adapter allows operators to transition safely from 3-inch FIG 1002 (10,000 PSI) iron to 2-inch FIG 1502 (15,000 PSI) iron while maintaining full compliance with rigorous safety standards for H2S exposure.

In sour gas operations, standard flowline iron is susceptible to Sulfide Stress Cracking (SSC). To mitigate this risk, this crossover is manufactured from high-strength forged alloy steel that has undergone specialized heat-treatment processes to control hardness levels in accordance with NACE MR0175 / ISO 15156. This ensures the structural integrity of the connection when exposed to sour well fluids, protecting both personnel and the environment.

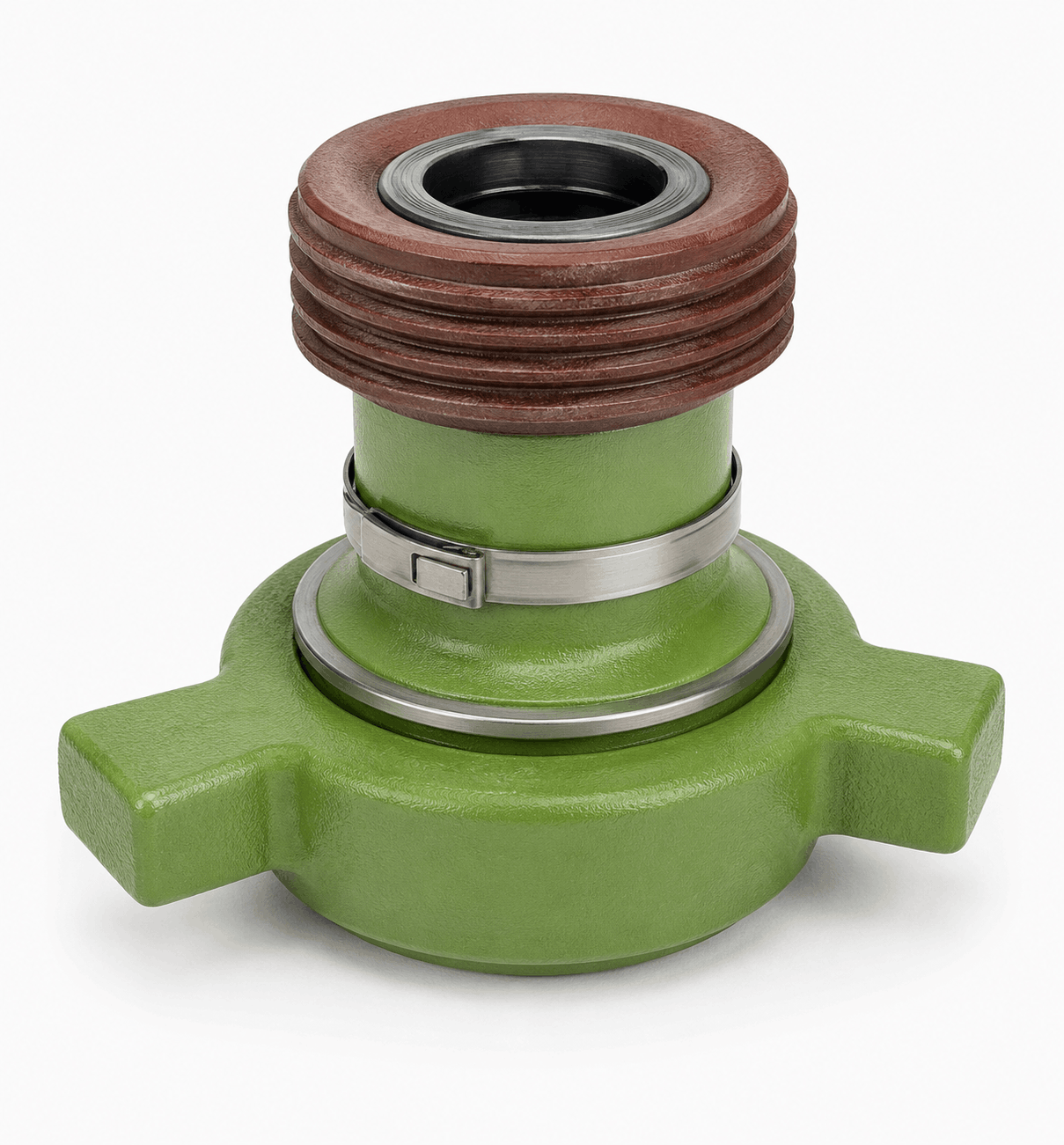

The 3" FIG 1002 Male end comes complete with a heavy-duty wingnut for rapid "hammer-up" installation, while the 2" FIG 1502 Female end features a precision-machined thread (sub) connection. This integral one-piece design eliminates the need for multiple adapters, reducing potential leak paths and ensuring a more compact, reliable rig-up.

Note: While the 2" FIG 1502 end is nominally a 15K connection, the overall assembly is limited by the FIG 1002 rating and sour service de-rating, resulting in a maximum working pressure of 10,000 PSI (10K CWP).

Features & Benefits

  • Sour Service Optimized: Fully compliant with NACE MR0175 / ISO 15156 standards for resistance to Sulfide Stress Cracking in H2S environments.

  • Integral Forged Construction: Machined from a single block of forged alloy steel to provide maximum strength and durability under extreme pressure and vibration.

  • Safe Transition: Enables the secure connection of 3" 10K iron to 2" 15K iron without the use of dangerous "stacked" adapters.

  • Corrosion Resistant: Specific metallurgical properties and protective coatings ensure a longer service life in aggressive chemical and abrasive environments.

  • Rapid Field Installation: The 1002 Male Wing end allows for fast makeup and breakout using standard rig hammers, minimizing downtime during rig-ups.

Specifications & Technical Details

Category Specification
Component Type Crossover Adapter / Crossover Union
End Connection 1 3 Inch FIG 1002 Male (Wing End with Nut)
End Connection 2 2 Inch FIG 1502 Female (Thread/Sub End)
Working Pressure 10,000 PSI (10K CWP)
Material NACE Compliant High-Strength Forged Alloy Steel
Service Application Sour Service (H2S Environments)
Industry Compliance NACE MR0175 / ISO 15156

Applications

This sour service crossover is an essential component for high-pressure manifold systems, well testing packages, and flowback operations where H2S is present. It is commonly used to connect 3-inch 10K flowlines to 2-inch 15K choke manifolds, separator inlets, or pump discharge lines where different union figures are utilized.

Quality Assurance

Each crossover adapter is subjected to stringent quality control measures, including magnetic particle inspection (MPI) and hydrostatic pressure testing to 1.5 times the rated working pressure. Full material traceability (MTRs) and NACE compliance certificates are available to ensure the product meets the highest safety requirements of the oil and gas industry.
