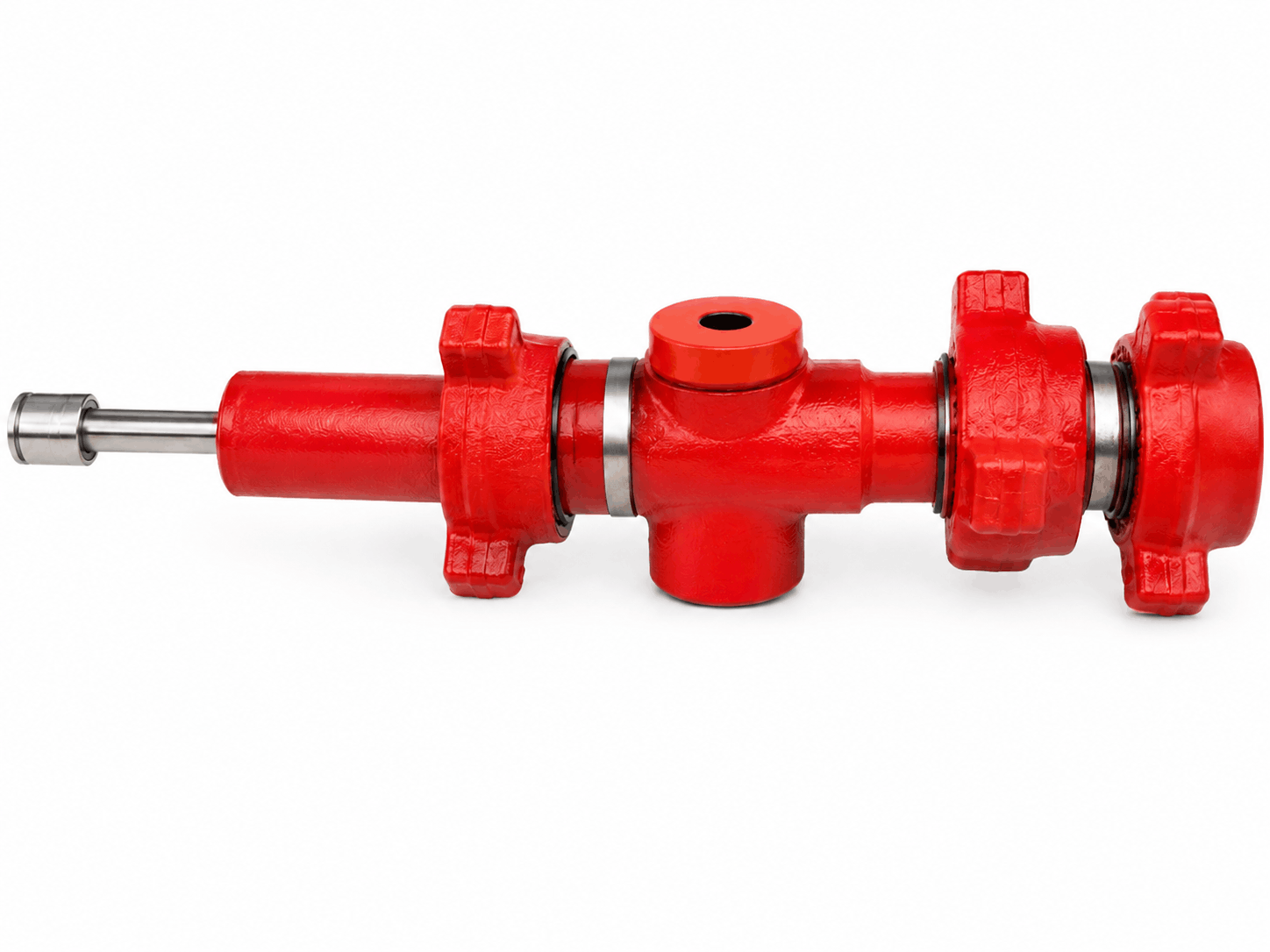

2" FIG 1502 Adjustable Choke Assembly – 3/4" Seat (With Tap, Without Plugs)

The 2" FIG 1502 Adjustable Choke Assembly is a heavy-duty, high-pressure flow control valve engineered for rigorous oilfield applications. Designed with integral 2-inch FIG 1502 hammer union end connections, this assembly safely handles extreme working pressures up to 15,000 PSI (15K CWP). It is a vital component for well testing, flowback operations, and choke manifold systems where precise control over fluid flow and pressure drops is required.

This specific assembly is equipped with a 3/4" maximum orifice seat, allowing operators to fine-tune the flow rate using the externally adjustable stem and calibrated indicator. The adjustable design permits continuous flow modification without the need to shut down the line, ensuring maximum operational efficiency.

Additionally, this choke body features an integrated tapped port ("With Tap"), providing a direct connection point for pressure gauges, sensors, or sampling lines. It is supplied "Without Plugs," allowing field personnel the flexibility to install their preferred instrumentation or sealing plugs immediately upon integration into the flowline.

Features & Benefits

• Extreme Pressure Rating: Built to withstand 15,000 PSI cold working pressure, ideal for aggressive high-pressure drilling and production environments.

• Precise Flow Control: Features a high-grade 3/4" seat and a conical stem design for accurate, infinitely variable flow restriction and pressure management.

• Calibrated Indicator: Externally readable scale allows operators to safely and accurately monitor the orifice size in increments of 1/64".

• Integral Tapped Port: The body tap provides quick and easy access for pressure monitoring equipment directly at the choke, enhancing situational awareness.

• FIG 1502 Connections: Integral hammer union ends provide fast, secure, and leak-free makeup and breakout in the field.

• Field Maintainable: Designed for easy inline maintenance; internal trim components (stem and seat) can be replaced quickly to minimize downtime.

Specifications & Technical Details

Applications

The 2" FIG 1502 Adjustable Choke Assembly is a critical asset for surface pressure control. Typical applications include choke and kill manifolds, well testing packages, flowback iron setups, frac-flowback operations, and production manifolds where dynamic control of high-pressure well fluids and gases is necessary.

Quality Assurance

All our choke assemblies are manufactured from high-strength forged steel and subjected to rigorous quality control processes. Each unit undergoes strict hydrostatic pressure testing prior to shipment to ensure shell integrity and seal performance under maximum working loads. Full material traceability and certification are available to guarantee safety and compliance with API guidelines.
