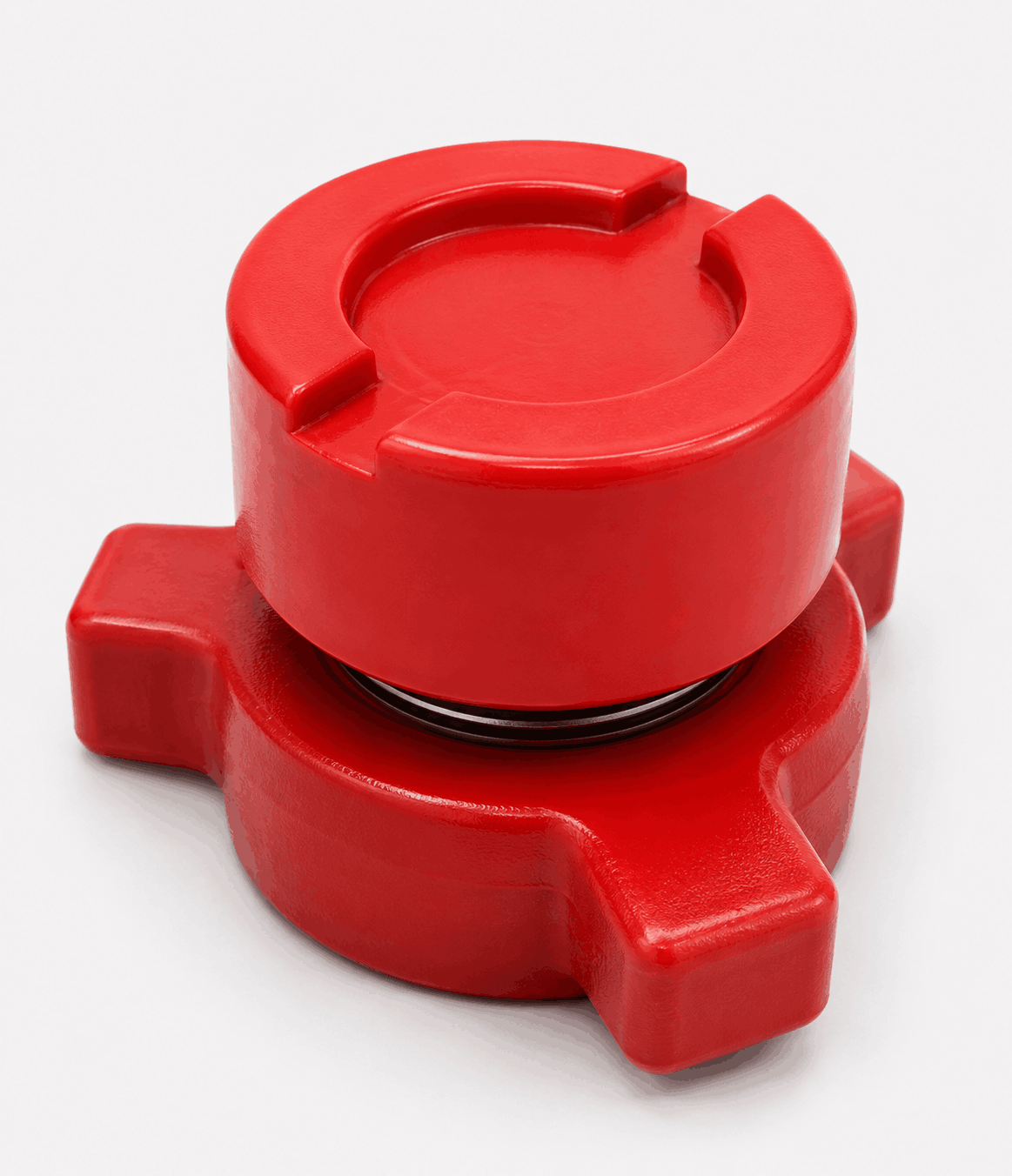

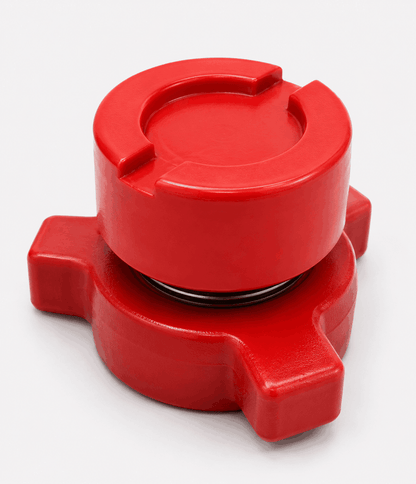

2" FIG 1502 Choke Saver – 15K PSI Flowline Wear Sub

The 2" FIG 1502 Choke Saver is a specialized, heavy-duty sacrificial flowline component engineered to absorb the extreme turbulence and localized erosion that occurs immediately downstream of a choke valve. Built with integral 2-inch FIG 1502 hammer union connections and rated for 15,000 PSI (15K CWP), this robust unit is an essential cost-saving asset for any high-pressure flowback, well testing, or choke manifold system.

When high-pressure well fluids pass through the restrictive orifice of a choke valve, it causes a massive pressure drop, resulting in extreme fluid velocity and chaotic turbulence. When these fluids contain abrasive materials like frac sand or proppants, this high-velocity turbulence rapidly erodes the inner walls of the iron placed immediately downstream of the choke.

The Choke Saver is specifically designed with extra-thick walls and highly erosion-resistant forged steel to act as a "target" for this destructive energy. By taking the brunt of the wear, the Choke Saver effectively protects your expensive choke assemblies, manifold blocks, and standard flowline iron from premature washout. When the Choke Saver eventually wears out, it can be quickly and cheaply replaced in the field, saving you from replacing much more expensive manifold components.

Features & Benefits

• Sacrificial Wear Protection: Deliberately designed to absorb extreme downstream turbulence and abrasive wear, extending the operational lifespan of your expensive chokes and manifold iron.

• Cost-Effective Maintenance: Significantly reduces equipment replacement costs; it is vastly cheaper to replace a sacrificial Choke Saver than a complete choke assembly or manifold cross.

• Heavy-Duty Construction: Manufactured from thick-walled, high-strength forged alloy steel specifically selected for superior erosion and abrasion resistance.

• Extreme Pressure Rating: Built to safely withstand 15,000 PSI cold working pressure in aggressive drilling and production environments.

• Integral FIG 1502 Connections: Features standard 2-inch FIG 1502 hammer union ends (Male x Female) for fast, secure integration directly behind the choke valve.

Specifications & Technical Details

Applications

The 2" FIG 1502 Choke Saver is a critical protective component for high-pressure, abrasive surface operations. Typical applications include direct installation downstream of adjustable and positive chokes in well testing packages, frac-flowback iron setups, choke and kill manifolds, and production manifolds where extreme pressure drops and sand-heavy fluids cause severe localized erosion.

Quality Assurance

All our Choke Savers are manufactured from premium forged alloy steel and subjected to rigorous quality control processes. Each unit undergoes strict hydrostatic pressure testing and ultrasonic wall-thickness verification prior to shipment to ensure absolute safety and structural integrity under maximum working loads.
