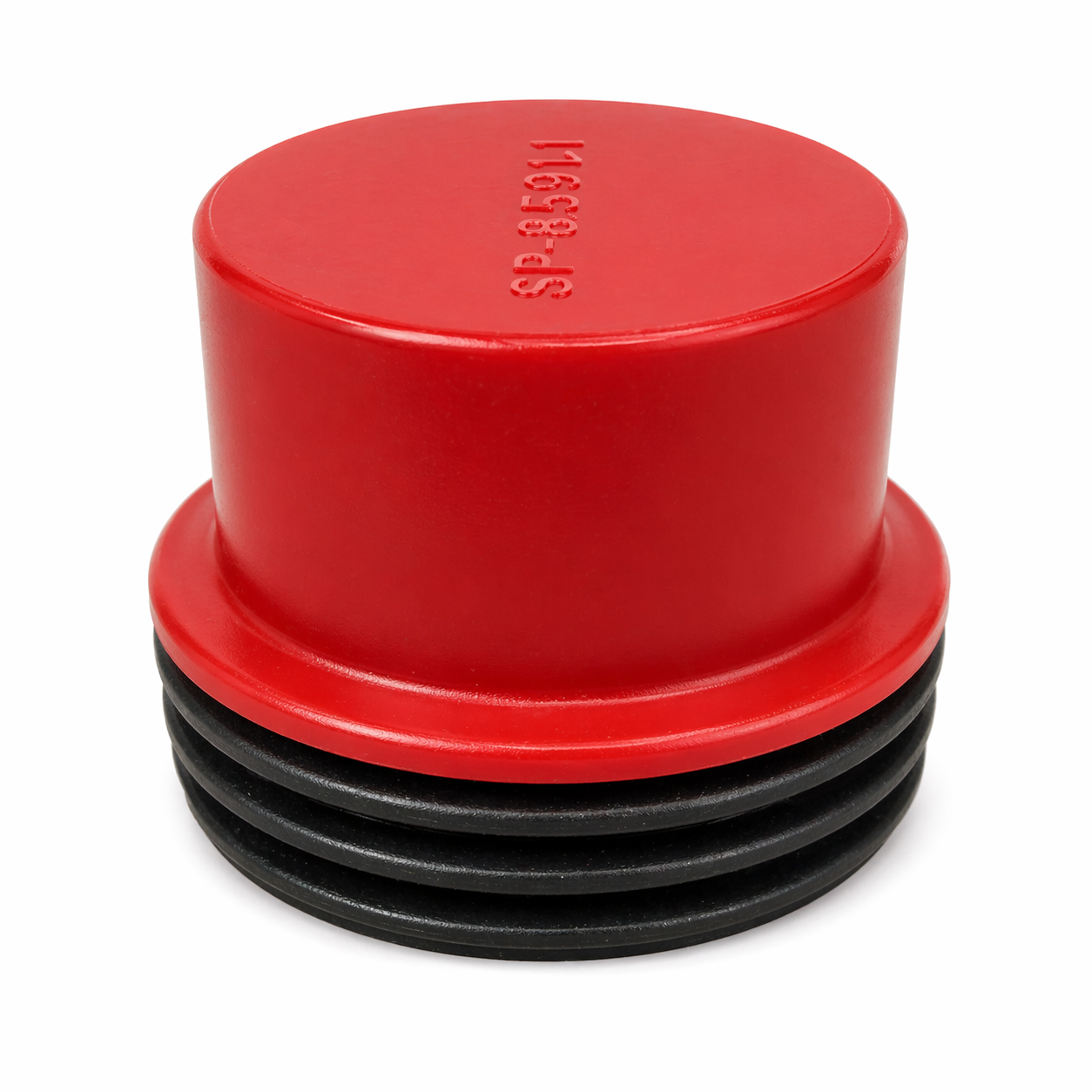

2" Figure 1502 Female (Threaded) Blind – High Pressure Hammer Union Plug

2" Figure 1502 Female (Threaded) Blind – High Pressure Hammer Union Plug

$139.50 USD
$167.40 USD $139.50 USD
In offerta Esaurito
Spese di spedizione calcolate al check-out.

The 2" Figure 1502 Female (Threaded) Blind is an essential high-pressure flowline component designed to securely seal and terminate lines utilizing Figure 1502 hammer union connections. Rated for a Cold Working Pressure (CWP) of 15,000 PSI, this blind—also known as a threaded hub blind—is engineered to provide a reliable, leak-proof barrier in the most demanding oilfield environments, including fracturing, cementing, and well-testing operations.

Manufactured from high-strength forged alloy steel, this blind is built to withstand the extreme mechanical stresses, heavy vibration, and abrasive fluids characteristic of upstream service. The precision-machined threaded (female) profile ensures seamless interchangeability with standard 2" Figure 1502 male wing nut ends, facilitating rapid assembly and disassembly in the field. Its robust construction ensures structural integrity even under intense pressure surges and thermal cycling.

Designed for maximum safety and field reliability, the 2" 1502 Female Blind offers a dependable solution for capping off manifolds, pump discharge lines, and flowline segments during maintenance or system reconfiguration.

Features & Benefits

  • 15,000 PSI CWP Rating: Specifically engineered for extreme high-pressure service in critical fracturing and stimulation applications.

  • Figure 1502 Interchangeability: Standardized design ensures full compatibility with all industry-standard 2" 1502 hammer union components.

  • Forged Alloy Steel Construction: Premium materials provide exceptional durability and resistance to impact and erosion.

  • Positive Sealing: Precision-machined threads and seating surfaces ensure a bubble-tight, blowout-proof seal under maximum pressure.

  • Vibration Resistant: Built to maintain sealing performance even when subjected to the high-pulsation environments of high-pressure pumping.

  • Rapid Deployment: The hammer union design allows for quick installation and removal using standard sledgehammers or union wrenches.

Specifications & Technical Details

Category Specification
Component Type Hammer Union Blind (Plug)
Figure Number Figure 1502
Size 2"
Pressure Rating 15,000 PSI CWP (Cold Working Pressure)
Connection End Female (Threaded Hub / Nut End Compatibility)
Material High-Strength Forged Alloy Steel
Service Type Standard Service (Sour Service options available)
Color Coding Industry-standard 1502 (Typically Blue/Red or Blue/Orange)
Typical Applications Frac lines, cementing, manifolds, well testing
Testing & Compliance Hydrostatic testing and material traceability to industry standards

Applications

This 2" Figure 1502 female blind is ideal for extreme-pressure operations requiring robust flowline termination. Typical uses include capping off fracturing manifolds, sealing unused pump discharge ports, isolating sections of well-testing flowlines, and protecting internal threads of union components during transport and storage.

Quality Assurance

Each blind is manufactured under rigorous quality control standards, undergoing non-destructive testing (NDT) and dimensional inspection to ensure absolute structural integrity and performance reliability under extreme high-pressure field conditions.
