Crossover Adapter – 3" FIG 1002 Female (Thread) x 2" FIG 1502 Male (Wing)

Crossover Adapter – 3" FIG 1002 Female (Thread) x 2" FIG 1502 Male (Wing)

$465.00 USD
$558.00 USD $465.00 USD
In offerta Esaurito
Spese di spedizione calcolate al check-out.

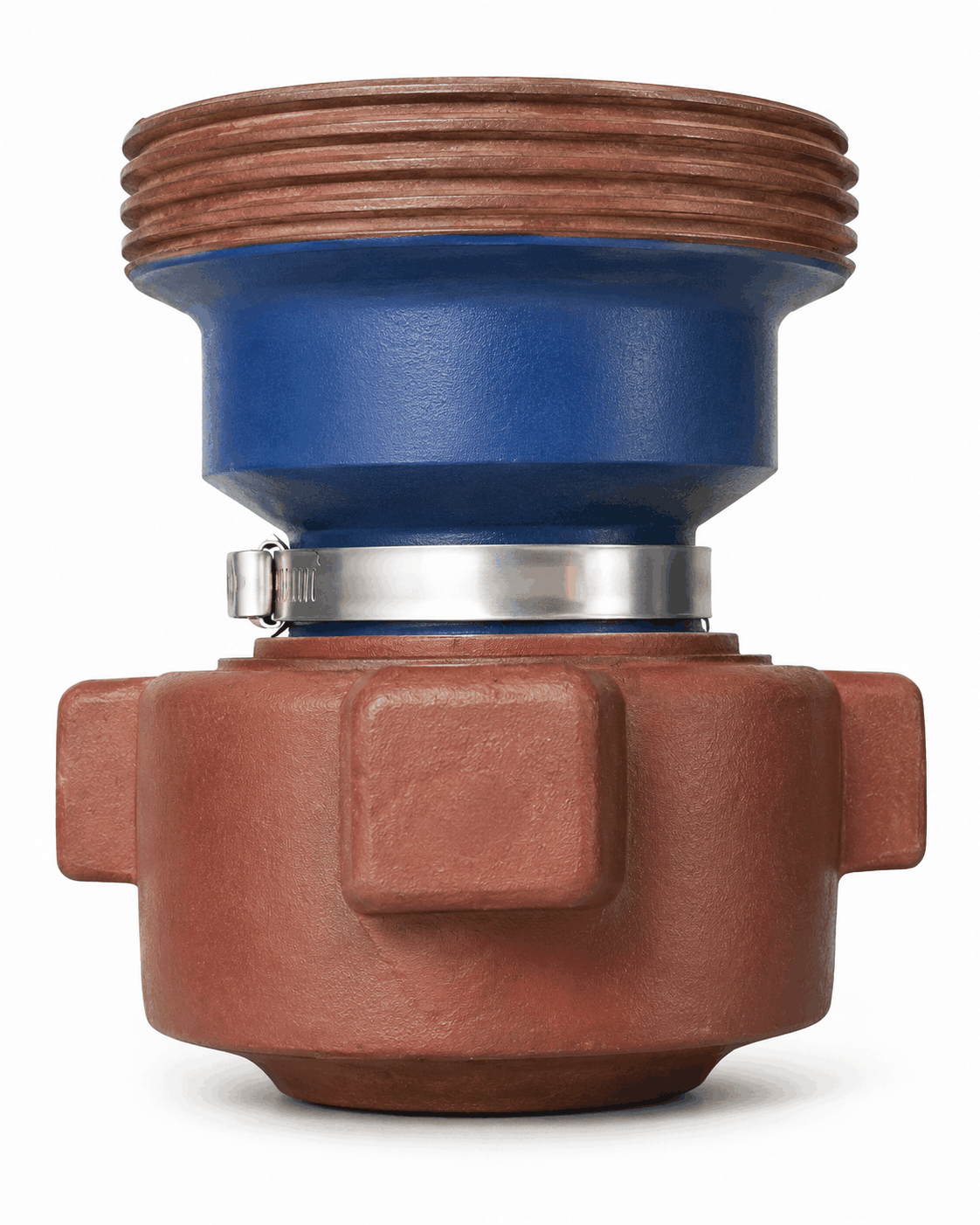

The Crossover Adapter, 3" FIG 1002 Female (Thread) x 2" FIG 1502 Male (Wing), is a heavy-duty forged steel flowline component designed to safely and securely connect dissimilar hammer union sizes and pressure ratings. This crucial adapter allows field operators to seamlessly transition from 3-inch 10,000 PSI (FIG 1002) piping systems to 2-inch 15,000 PSI (FIG 1502) flowline iron without compromising structural integrity or sealing performance.

In complex oilfield operations such as fracturing, cementing, and well testing, rig-ups often require mating equipment from different systems. This crossover eliminates the need for multiple fittings, reducing the overall footprint, minimizing potential leak paths, and ensuring a streamlined flow rate. The 3" FIG 1002 end features a female thread connection, while the 2" FIG 1502 end includes a male wing configuration complete with a heavy-duty wingnut for fast, hammer-up installation.

Note: While the 2" FIG 1502 connection is rated for 15,000 PSI, the overall working pressure of this crossover assembly is limited by the 3" FIG 1002 connection, resulting in a maximum system pressure rating of 10,000 PSI (10K CWP).

Features & Benefits

  • Seamless Transition: Safely connects 3-inch 10K iron to 2-inch 15K iron, providing essential flexibility for custom manifold and flowline rig-ups.

  • Reduced Leak Paths: Acts as a single, integral adapter, eliminating the need to stack multiple fittings and thereby reducing potential failure points.

  • Heavy-Duty Forged Construction: Manufactured from high-strength alloy steel (such as 4130/4140) to withstand severe shock loads, vibration, and abrasive fluid flow.

  • Fast Installation: The FIG 1502 male end includes a heavy-duty wingnut, allowing for rapid, secure makeup and breakout using standard rig hammers.

  • Reliable Sealing: Precision-machined seating surfaces and compatible elastomeric seals ensure a bubble-tight, leak-free connection under high pressure.

Specifications & Technical Details

Category Specification
Component Type Crossover Adapter / Crossover Union
End Connection 1 3 Inch FIG 1002 Female (Thread End)
End Connection 2 2 Inch FIG 1502 Male (Wing End, with Wingnut)
Maximum Working Pressure 10,000 PSI (10K CWP) - Limited by FIG 1002 rating
Material High-Strength Forged Alloy Steel
Service Application Standard Service

Applications

This crossover adapter is widely used in high-pressure surface operations where transitioning between different pipe diameters and pressure classes is required. Typical applications include choke and kill manifolds, frac iron rig-ups, well testing packages, cementing lines, and general flowback operations where 3" 10K lines must feed into or draw from 2" 15K lines.

Quality Assurance

All our crossover adapters are manufactured from premium forged alloy steel and subjected to strict quality control processes. Each fitting undergoes rigorous dimensional inspection and hydrostatic pressure testing prior to shipment to ensure absolute safety, shell integrity, and seal performance. Full material traceability is available to guarantee compliance with API guidelines.
