2" Fig 1502 Male (Wing) x 1" LP Swage | High-Pressure Crossover Adapter

2" Fig 1502 Male (Wing) x 1" LP Swage | High-Pressure Crossover Adapter

$889.00 USD
$1,066.80 USD $889.00 USD
セール 売り切れ
配送料はチェックアウト時に計算されます。

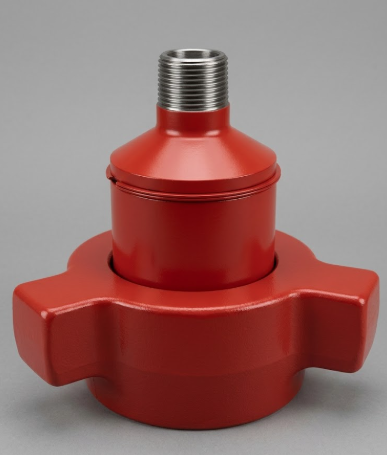

The 2" Fig 1502 Male (Wing) x 1" Line Pipe (LP) Swage is a premium, heavy-duty crossover adapter engineered to provide a safe, leak-free transition from high-pressure hammer union flowlines to smaller-diameter piping and instrumentation. This specialized fitting features a 2-inch Figure 1502 Male connection (complete with the male sub and heavy-duty wing nut) on one side, and a standard 1-inch API Line Pipe (LP) threaded connection on the opposite end.

Manufactured from a solid block of high-strength, heat-treated forged alloy steel, this integral swage is built to withstand the extreme mechanical stresses, fluid cavitation, and intense vibration inherent in 15,000 PSI manifold systems. It is the perfect solution for operators needing to step down from a massive 2-inch high-pressure line to accommodate 1-inch threaded components such as pressure gauges, chemical injection quills, bleed-off valves, or smaller choke and kill tie-ins.

By utilizing an integral (one-piece) forged design rather than a welded assembly, this swage eliminates structural weak points. This ensures superior resistance to severe pressure surges and provides a reliable, blowout-proof connection during cementing, well testing, and frac flowback operations.

Features & Benefits

  • Integral Forged Construction: Machined from a single block of premium alloy steel, eliminating weld seams and providing maximum structural integrity under extreme pressure surges and vibrations.

  • Complete Male Connection: Equipped with the integral male sub and heavy-duty 1502 wing nut, allowing for rapid, hammer-up installation directly onto any standard 2" 1502 female (threaded) union.

  • Seamless Transition: Safely steps down from a 2" 1502 hammer union flowline to a 1" LP threaded connection, ideal for installing precision sensors, gauges, or auxiliary bleed lines.

  • High-Pressure Durability: The 2" Fig 1502 male end is engineered for standard 15,000 PSI Cold Working Pressure (CWP) environments. (Note: System pressure must be regulated to the maximum rating of the 1" LP threaded connection).

  • Precision Machined Threads: The 1" API Line Pipe threads are cut to exacting tolerances to ensure fast makeup, galling resistance, and a leak-proof seal.

Specifications & Technical Details

Category Specification
Component Type Swage / Crossover Adapter
Primary Connection (End 1) 2" Fig 1502 Male (Male Sub complete w/ Wing Nut)
Secondary Connection (End 2) 1" API Line Pipe (LP)
Material Construction High-Strength Forged Alloy Steel
Pressure Rating Up to 15,000 PSI CWP (Derated by LP Thread limitations)
Service Application Standard Service (Sour Service H2S available upon request)

Applications

This 2" x 1" LP Male Crossover Swage is a critical utility fitting for high-pressure oilfield manifolds. It is extensively used in cementing and circulating manifolds, well testing packages, frac iron assemblies, and blow-out preventer (BOP) stacks for integrating 1-inch instrumentation, tying in chemical injection lines, or routing small-bore bleed-off and kill lines safely into the primary 2-inch system.

Quality Assurance

Every crossover swage undergoes rigorous quality control inspections. The alloy steel forgings are ultrasonically tested for internal flaws, while all LP threads are strictly verified using calibrated ring and plug gauges to ensure a perfect, high-pressure seal out in the field. The hammer nuts are individually inspected for thread integrity and impact resistance.
