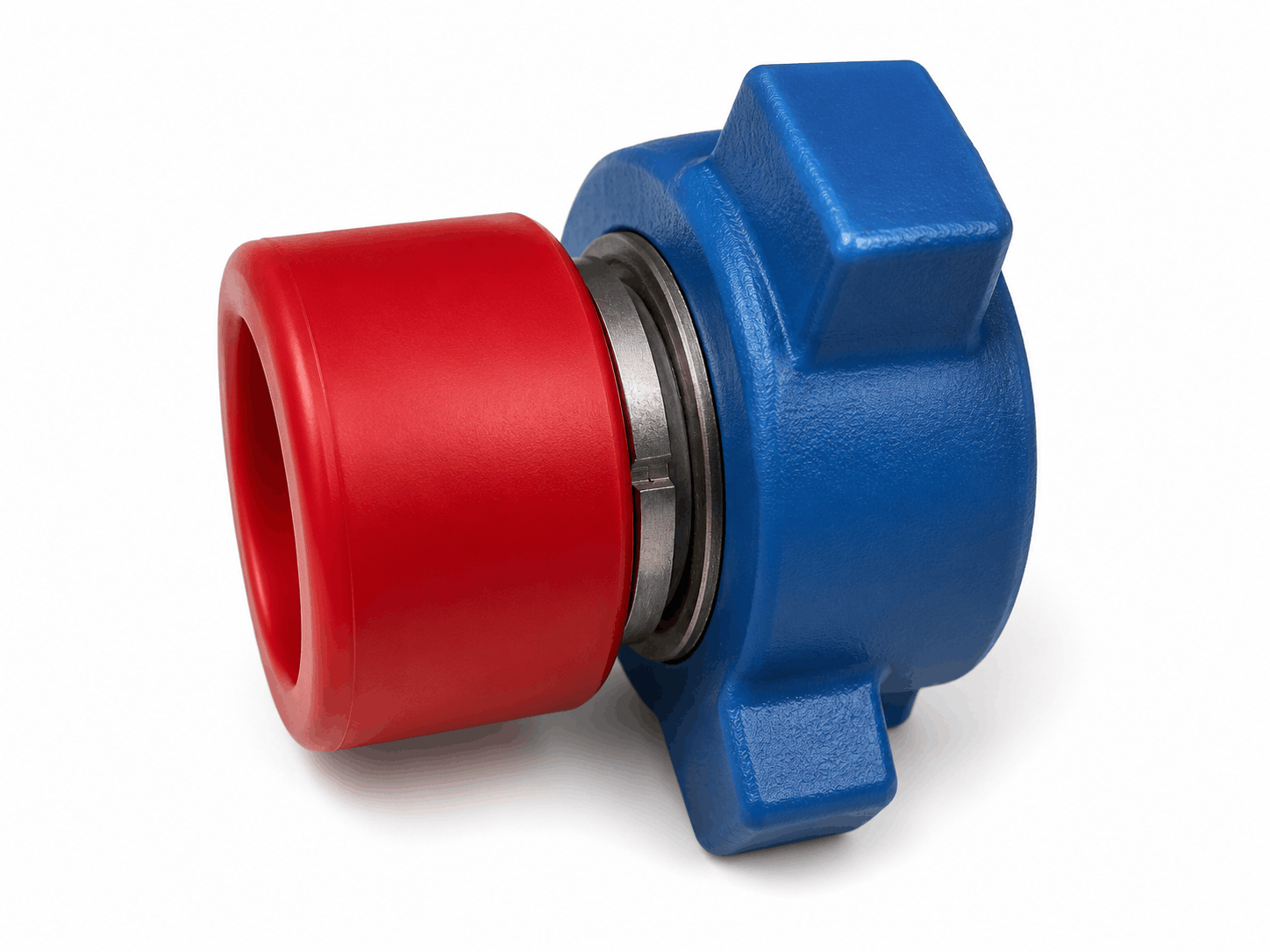

2" FIG 1502 Male (Wing) x 2" FIG 1502 Female (Thread) Crossover Adapter | Sour Service (H2S) | 5" Length

The Crossover Adapter, 2" FIG 1502 Male (Wing) x 2" FIG 1502 Female (Thread) with a compact 5-inch length for Sour Service, is a specialized, heavy-duty flowline component engineered to safely extend connections, bridge tight spatial gaps, and protect permanent manifold equipment within a 15,000 PSI high-pressure piping system exposed to toxic H2S environments.

Operating in sour gas (H2S) environments subjects high-pressure flowline iron to extreme risks of hydrogen embrittlement and Sulfide Stress Cracking (SSC). To guarantee maximum safety and absolute compliance, this entire crossover body is forged from premium, corrosion-resistant steel alloys and subjected to strictly controlled heat-treatment processes. This ensures the metallurgical properties comply fully with all NACE MR0175 / ISO 15156 performance standards for hazardous sour service applications.

Featuring a compact 5-inch overall length, this component acts simultaneously as a "saver sub" and a rigid, short-span spacer. When installed onto expensive, permanent sour service manifold equipment (such as a choke and kill manifold or wellhead), it extends the connection point just enough to bypass physical obstructions. More importantly, it takes the brunt of the daily hammer make-up and break-out wear, protecting the critical, high-value master threads from mechanical damage without adding unnecessary bulk to the rig-up.

Features & Benefits

• Sour Service Compliant: Forged from specialized alloys and strictly heat-treated to comply with NACE MR0175 / ISO 15156 standards for safe operation in hazardous H2S environments.

• Compact 5-Inch Length: Provides essential reach and alignment clearance in a condensed profile, functioning as a short extension spacer to accommodate tight sour service layouts.

• Male x Female Configuration: Acts as a direct extension or "saver sub" to protect the threads and sealing surfaces of permanent, high-value flowline equipment.

• 15K High-Pressure Rating: Engineered to safely handle a full 15,000 PSI cold working pressure under severe chemical and mechanical stress.

• Reduced Equipment Wear: By absorbing the repeated shock and mechanical stress of rig hammer blows during routine rig-ups, it dramatically extends the lifespan of primary manifold connections.

Specifications & Technical Details

Applications

This 5-inch sour service Male x Female adapter is a mandatory safety asset for high-pressure surface operations involving corrosive gases where standard 2-inch 15K lines require a slight spacing extension, or where primary equipment threads need protection from continuous rig-ups. Typical applications include toxic well testing packages, H2S choke and kill manifolds, sour frac-flowback iron rig-ups, acidizing systems, and general production manifolds requiring reliable, NACE-compliant 15,000 PSI connections in tight spaces.

Quality Assurance

All our sour service adapters undergo rigorous quality control and non-destructive metallurgical verification. The forged bodies are strictly tested for hardness to guarantee maximum resilience against Sulfide Stress Cracking. Each unit undergoes precise hydrostatic pressure testing prior to shipment to ensure absolute shell integrity and leak-free seal seating under maximum working loads. Full material traceability (MTRs) and NACE certificates are available.
