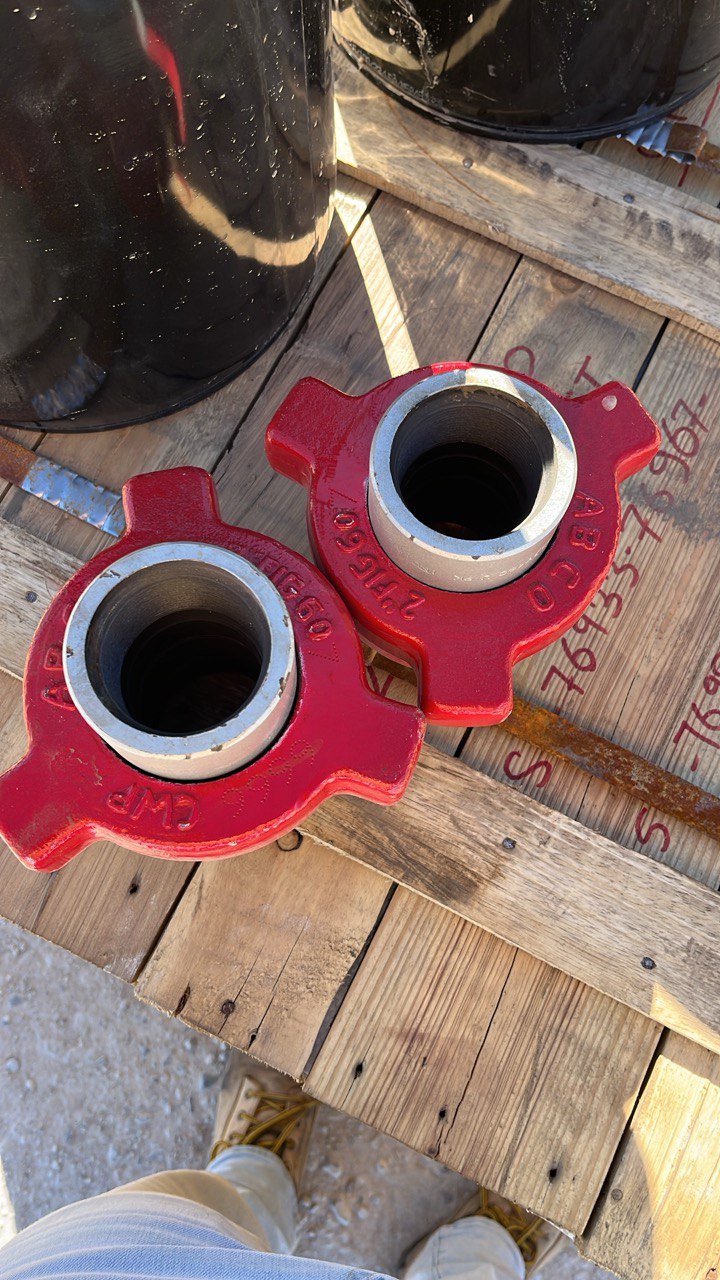

2" Fig 607 Threaded Hammer Union – Oil & Gas Flowline Fitting

The 2" Figure 607 Threaded Hammer Union is a heavy-duty, Guiberson-style flow control component specifically engineered for dependable fluid routing in medium-to-high pressure upstream and midstream operations. Rated for a 6,000 PSI Cold Working Pressure (CWP), this resilient hammer union is widely recognized for its extended sub design, which allows for maximum clearance and quick breakout on tight manifold and truck-mounted applications. It provides a highly secure, fast-makeup connection for 2-inch piping systems, making it an ideal choice for hot oil applications, well servicing, and heavy-duty fluid networks.

Manufactured from premium high-strength forged low-alloy steel, the Figure 607 union is built to withstand rigorous mechanical demands, thermal stress, and continuous field usage. Its hallmark feature is the specialized, replaceable "vee lip" type elastomeric seal ring embedded within the female sub. This primary elastomeric barrier provides a dependable, bubble-tight seal that protects the secondary metal-to-metal seating surfaces from abrasive fluids and corrosive elements, significantly extending the operational lifespan of the union components.

Equipped with precision-cut female threaded ends (NPT / Line Pipe), this 2-inch union integrates seamlessly onto standard threaded pipework, creating a robust connection point that effectively resists severe pressure surges and vibration. The heavy-duty wing nut allows for rapid, tool-free assembly and dismantling in the field, optimizing rig-up times while maximizing structural safety across 6,000 PSI fluid networks.

Features & Benefits

• 6,000 PSI Pressure Rating: Engineered to safely manage medium-to-high pressure fluid systems with a reliable 6,000 PSI Cold Working Pressure (CWP) rating.

• Extended Sub Design: Features extended subs that provide extra clearance, allowing for much quicker makeup and breakout on crowded manifolds and hot oil trucks.

• Guiberson-Style Vee Lip Seal: Utilizes a resilient elastomeric "vee lip" seal ring that provides a dependable primary barrier, protecting metal seating surfaces from harsh and hot fluids.

• Precision NPT Threads: Features standard threaded ends for quick, secure, and vibration-resistant makeup onto 2-inch threaded line pipe.

• Forged Low-Alloy Steel Construction: Built to deliver exceptional durability and thermal resistance, making it particularly effective in hot oil applications.

• Rapid Makeup Design: The robust wing nut enables quick, ultra-secure connections and disconnections in the field, drastically reducing operational downtime.

Specifications & Technical Details

Applications

This 2" Figure 607 threaded hammer union is essential for medium-to-high pressure flowline networks requiring reliable, leak-free containment and rapid breakout. Typical applications include hot oil truck configurations, well servicing lines, standard pump discharge operations, compact pumping manifolds, and general oilfield fluid routing where a 6,000 PSI pressure containment and extra clearance are critical.

Quality Assurance

Each hammer union assembly undergoes strict quality control protocols, including precision dimensional verification, exact thread gauging, and full material traceability (MTRs), ensuring complete structural integrity, safe pressure containment, and reliable field performance in high-stress thermal environments.
