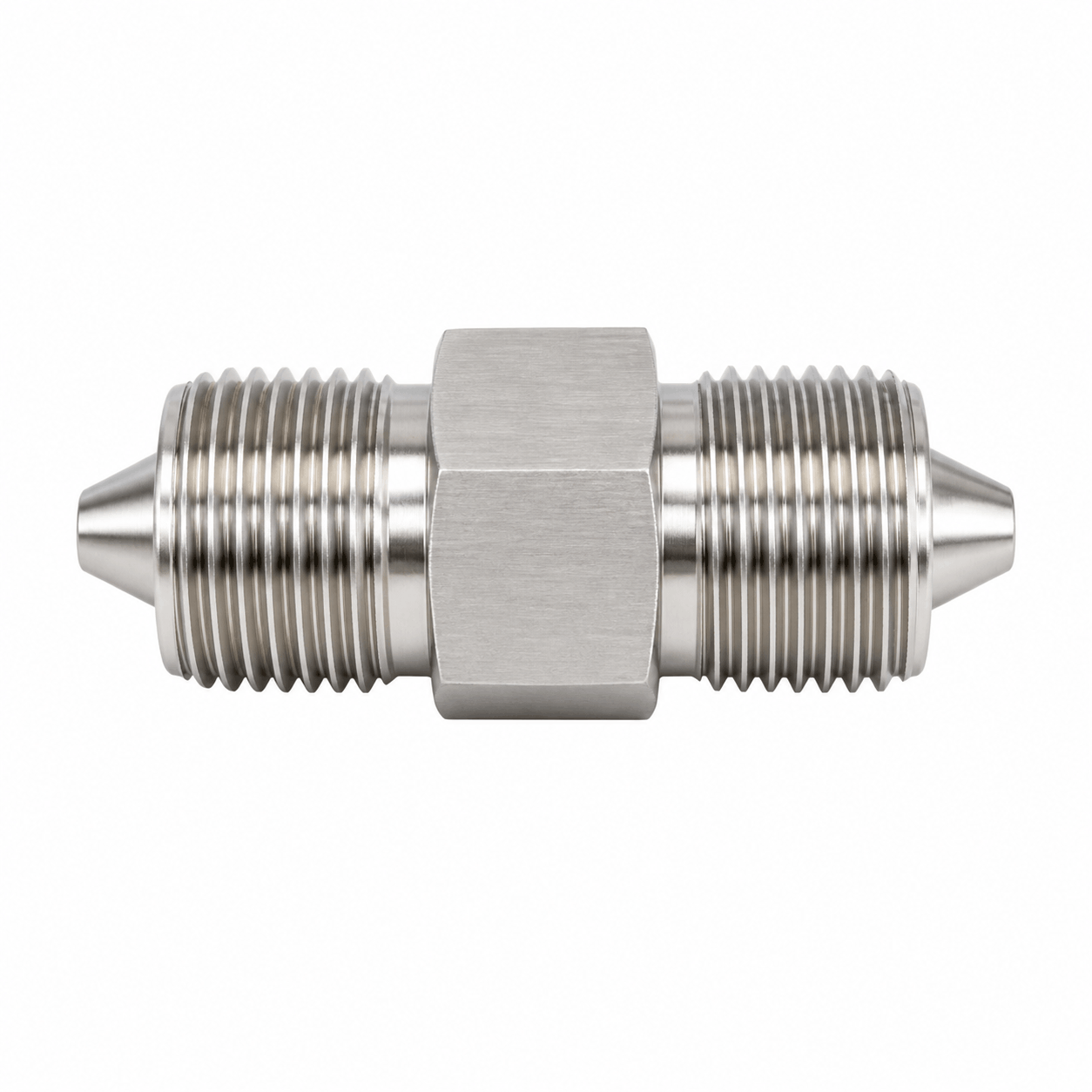

9/16" HP Male x 9/16" HP Male Straight Connector – 60,000 PSI Stainless Steel Adapter

The 9/16" High-Pressure (HP) Male x 9/16" HP Male Straight Connector is a heavy-duty, high-precision adapter engineered to directly join two female 9/16" HP ports in ultra-high-pressure fluid and gas systems. Rated for an extreme Maximum Allowable Working Pressure (MAWP) of 60,000 PSI (60K), this straight coupling is an essential component for seamlessly interconnecting valves, block tees, and manifolds on high-pressure test benches, waterjetting equipment, and chemical injection skids without the need for intermediate tubing spools.

Both ends of the connector feature precision-machined 9/16" High-Pressure (HP) Male connections utilizing the industry-standard Autoclave-style coned and threaded design. When threaded into prepared female ports, the coned tips of the connector are driven securely into the mating seats, creating a flawless, blowout-proof metal-to-metal seal that remains bubble-tight even under intense mechanical vibration and severe pressure cycling.

Manufactured from premium cold-worked 316 stainless steel, this solid-body adapter delivers uncompromising structural integrity. It offers exceptional tensile strength and superior resistance to harsh offshore environments, corrosive chemicals, and mechanical fatigue, ensuring long-lasting system safety in the most demanding 60K applications.

Features & Benefits

• 60,000 PSI MAWP Rating: Safely contains and transmits ultra-high fluid and gas pressures, providing a blowout-proof conduit for 60K systems.

• Male-to-Male Connectivity: Allows for the direct connection of two female 9/16" HP ports, reducing equipment footprint and minimizing potential leak paths.

• Cone & Thread Technology: Employs the proven coned and threaded seating design on both ends for a highly reliable metal-to-metal seal.

• Cold-Worked 316 SS Construction: Offers premium structural strength alongside excellent resistance to corrosion, chemical attack, and sour gas (H2S).

• Compact & Rigid Design: Eliminates the need for custom-cut tubing spools when coupling adjacent valves or manifold blocks.

• Standard Interchangeability: Fully compatible with industry-standard 9/16" HP valves, fittings, and equipment (e.g., Autoclave, Butech, Parker).

Specifications & Technical Details

Applications

This 9/16" HP Male x 9/16" HP Male connector is frequently utilized in ultra-high-pressure circuits where tight equipment integration is required. Typical applications include coupling high-pressure isolation valves directly to distribution manifolds, extending port reach on densely packed hydrostatic test benches, and securely joining modular subsea control panel components.

Quality Assurance

Each connector is CNC-machined to exacting tolerances under rigorous quality control standards. Both coned sealing surfaces and threads undergo strict visual inspection and dimensional gauging to ensure a perfect fit with standard female ports, preventing galling during assembly. All 316 SS materials are fully traceable, ensuring the component provides reliable, fail-safe performance at its maximum 60,000 PSI operational limit.
