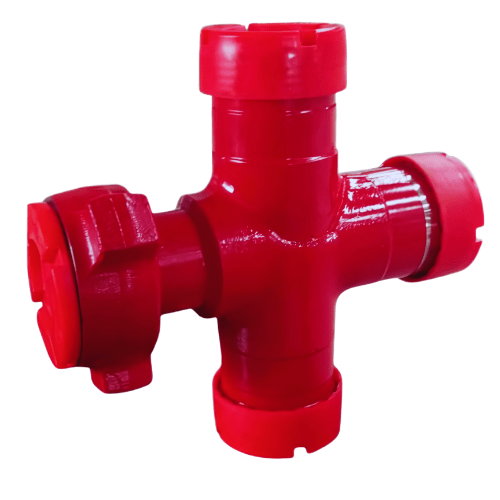

Cross, 3", 1502 F(thread) x F(thread) x F(thread) x M(wing) Standard, 15000 PSI

Cross, 3", 1502 F(thread) x F(thread) x F(thread) x M(wing) Standard, 15000 PSI

Introducing the 3" 15000 PSI Standard High Pressure Cross, a heavy-duty component engineered for critical fluid handling and directional control within high-pressure oilfield operations. Designed to accommodate higher flow rates while maintaining the integrity required for extreme pressure environments, this cross fitting features a robust configuration of three 1502 Female (F) threaded connections and one 1502 Male (M) Wing Union connection. Capable of withstanding pressures up to 15000 PSI, it provides essential versatility, reliability, and safety for integration into larger bore manifold systems, testing lines, and other demanding upstream and midstream applications.

Features:

• Extreme Pressure Rating: Built to perform reliably at working pressures up to 15000 PSI, suitable for the most rigorous oilfield pressure applications.
• Increased Flow Capacity: 3-inch size allows for greater volume flow compared to smaller fittings, ideal for systems requiring higher throughput.
• Versatile 4-Way Configuration: Features three 1502 Female threaded ports and one 1502 Male Wing Union port for flexible multi-directional connections.
• Secure 1502 Connections: Leverages industry-standard 1502 connections, renowned for their dependable sealing and robust makeup in high-pressure service.
• Durable Construction: Manufactured from high-strength alloy, designed to resist wear, corrosion, and fatigue under severe operating conditions.
• Standard Compliance: Produced to standard oilfield specifications, ensuring compatibility and straightforward integration.
• Operational Safety: Provides a secure, leak-resistant junction point, contributing significantly to the safety and efficiency of high-pressure systems.

Specifications and Technical Details:

• Type: Cross Fitting
• Size: 3 inches
• Pressure Rating: 15000 PSI (103 MPa) Working Pressure
• End Connections: 1502 Female Thread x 1502 Female Thread x 1502 Female Thread x 1502 Male Wing Union
• Standard: Standard Service
• Material: High-strength alloy (Material Test Reports available upon request)
• Service: Designed for High Pressure Oilfield Service

Application:

This 3" 15000 PSI Standard High Pressure Cross is a vital component for demanding applications where higher flow rates and extreme pressure handling are required. Common applications include:

• High-Volume Fracturing Manifolds: Directing large volumes of frac fluid in high-pressure operations.
• Heavy-Duty Well Testing Equipment: Used in surface testing setups requiring robust, high-pressure connections.
• High-Capacity Production Manifolds: Integration into systems handling significant production flow under pressure.
• Large Bore Cementing Lines: Part of larger systems for directing cement slurry.
• Blowout Preventer (BOP) and Well Control Systems: Used in critical safety manifolds.
• General High-Pressure Fluid Transfer: Applicable in any high-pressure piping system requiring a 3-inch, 4-way junction.

This high-quality fitting is supplied by Blaze Sales and Service.

For inquiries or to place an order, please call +1 405 666 5011 or email us at seo@blazess.com.
