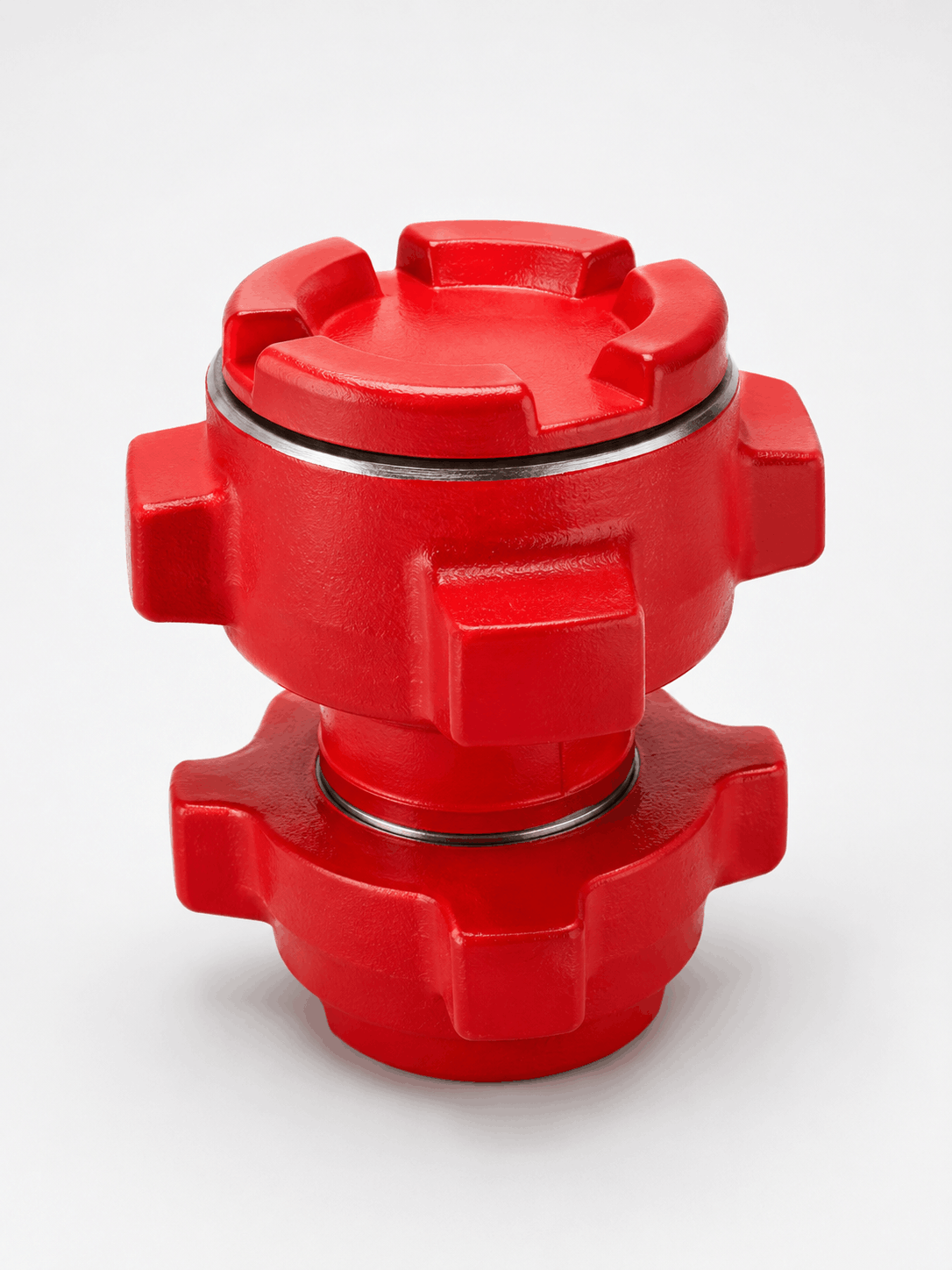

Crossover Adapter – 2" FIG 1502 Male (Wing) x 2" FIG 1502 Male (Wing) | 7" Length

The Crossover Adapter, 2" FIG 1502 Male (Wing) x 2" FIG 1502 Male (Wing) with an extended 7-inch length, is a heavy-duty, forged steel flowline component designed to safely join two female (thread/sub) connections within the same 15,000 PSI high-pressure piping system while precisely bridging a specific spatial gap. This integral adapter provides field operators with a reliable, high-strength solution for connecting standard 2-inch 15K iron pieces without restricting the internal flow path or compromising system safety.

Featuring an extended 7-inch overall length, this component acts simultaneously as an adapter and a short spacer. The Male x Male (Wing x Wing) configuration means both ends are equipped with heavy-duty FIG 1502 wingnuts, making it an indispensable component for directly mating two female union ends in rigid or complex manifold layouts. By bridging these female connections directly across a 7-inch span, this adapter eliminates the need for inserting unnecessary spacer pup joints or stacking multiple fittings, which significantly reduces the overall rig-up footprint, minimizes potential leak paths, and ensures a streamlined flow rate.

Features & Benefits

• Extended 7-Inch Length: Provides essential reach and alignment clearance, functioning as both a Male x Male adapter and a short spacer to accommodate tight or rigid manifold layouts.

• Male x Male Configuration: Features wingnuts on both ends, providing a direct, streamlined solution for mating two female (thread/sub) union connections in high-pressure rig-ups.

• 15K High-Pressure Capacity: Maintains an uninterrupted 2-inch flow path rated for a full 15,000 PSI cold working pressure, ideal for extreme oilfield environments.

• Reduced Leak Paths: Single-piece forged construction replaces hazardous combinations of pup joints and adapters, drastically reducing potential failure points.

• Fast Field Installation: Dual heavy-duty wingnut ends allow for rapid, secure makeup and breakout on both sides using standard rig hammers.

Specifications & Technical Details

Applications

This extended 7-inch Male x Male adapter is widely used in high-pressure surface operations where two female FIG 1502 union components must be directly joined across a specific gap. Typical applications include custom frac iron rig-ups, rigid well testing packages, cementing lines, choke and kill manifolds, pump discharge lines, and general flowback operations requiring secure, precise 15,000 PSI connections.

Quality Assurance

All our adapters are manufactured from premium forged alloy steel and subjected to strict quality control processes. Each fitting undergoes rigorous dimensional inspection and hydrostatic pressure testing prior to shipment to ensure absolute safety, shell integrity, and seal performance under maximum working loads. Full material traceability is available to guarantee compliance with API guidelines.
