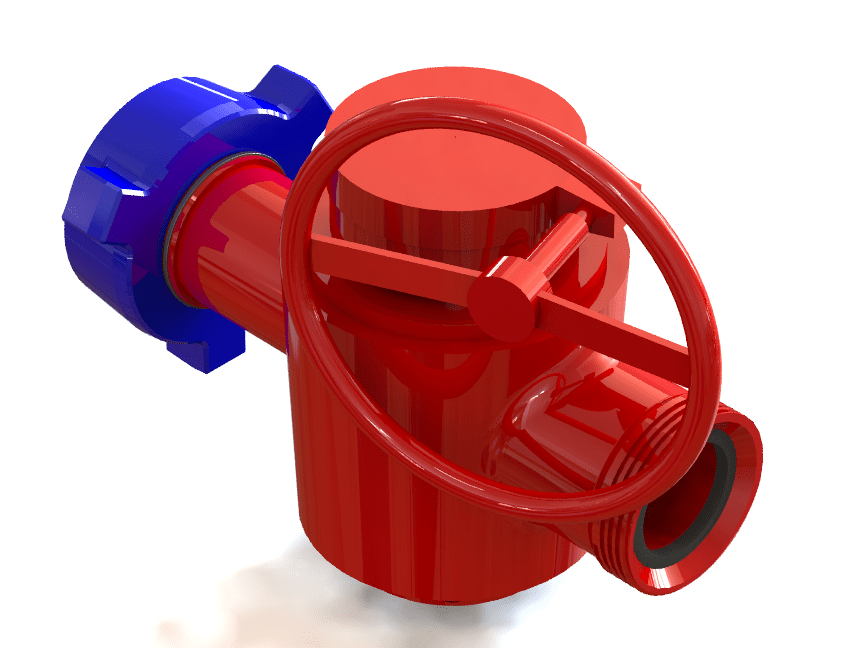

3" x 3" 1502 Gear Operated Plug Valve – 15K PSI High Pressure Oilfield Valve

The 3" x 3" 1502 Gear Operated Plug Valve is engineered for reliable flow control in high-pressure oilfield applications. Rated up to 15,000 PSI (15K), this valve is designed to handle demanding operations involving oil, gas, drilling mud, cement slurry, and fracturing fluids.

Manufactured from forged alloy steel, the valve offers exceptional strength, durability, and resistance to wear in harsh environments. The gear-operated mechanism provides mechanical advantage, allowing smooth and controlled manual operation even under full line pressure.

Its full bore design ensures unrestricted flow with minimal pressure drop, while the metal-to-metal and resilient sealing system delivers secure, leak-resistant shutoff for safe and efficient operation.

Designed for standard oilfield service, this valve is a dependable solution for drilling, production, and well servicing applications requiring consistent high-pressure performance.

Key Features

• Rated up to 15,000 PSI (15K CWP) for high-pressure applications
• Gear operated mechanism for smooth and controlled operation
• Forged alloy steel body for strength and durability
• Full bore design for unrestricted flow and reduced pressure loss
• Reliable shutoff with leak-resistant sealing system
• Suitable for oil, gas, mud, cement, and fracturing fluids
• Designed for standard service (non-sour applications)
• Low maintenance design for extended service life

Technical Specifications

• Size: 3" x 3"
• Model: 1502 Gear Operated Plug Valve
• End Connections: 1502 Union (API 6A compatible)
• Working Pressure: 15,000 PSI (CWP)
• Test Pressure: 22,500 PSI
• Body Material: Forged alloy steel (AISI 4130 / 4140)
• Plug Material: Heat-treated alloy steel
• Seal Type: Metal-to-metal with elastomer support
• Operation: Gear operated (manual)
• Bore: Full bore (3")
• Service: Standard oilfield service (non-sour)
• Temperature Range: Suitable for oilfield conditions
• Standards: API 6A compliant

Applications

• Drilling manifolds and mud systems
• Well servicing and cementing operations
• Fracturing and flowback equipment
• Production manifolds and flow lines
• Pipeline isolation in high-pressure systems
• General oilfield flow control applications

Frequently Asked Questions

What is a 1502 gear operated plug valve used for?
It is used for high-pressure flow control in oilfield systems such as drilling, production, and fracturing operations.

What pressure rating does this valve support?
This valve is rated for 15,000 PSI (15K) cold working pressure.

What is the advantage of gear operation?
Gear operation reduces manual effort and allows controlled valve movement under high-pressure conditions.

Is this valve suitable for sour service?
No, this valve is designed for standard oilfield service. Sour service applications require NACE compliant valves.
