Blaze Sales & Service

Gate Valve, Expanding Gate, 2-9/16" 5M 2-7/8" 8RD EUE, HW, DD, LU, PSL-2,

Gate Valve, Expanding Gate, 2-9/16" 5M 2-7/8" 8RD EUE, HW, DD, LU, PSL-2,

$1,499.00 USD
$1,499.00 USD
Sale Sold out
Shipping calculated at checkout.

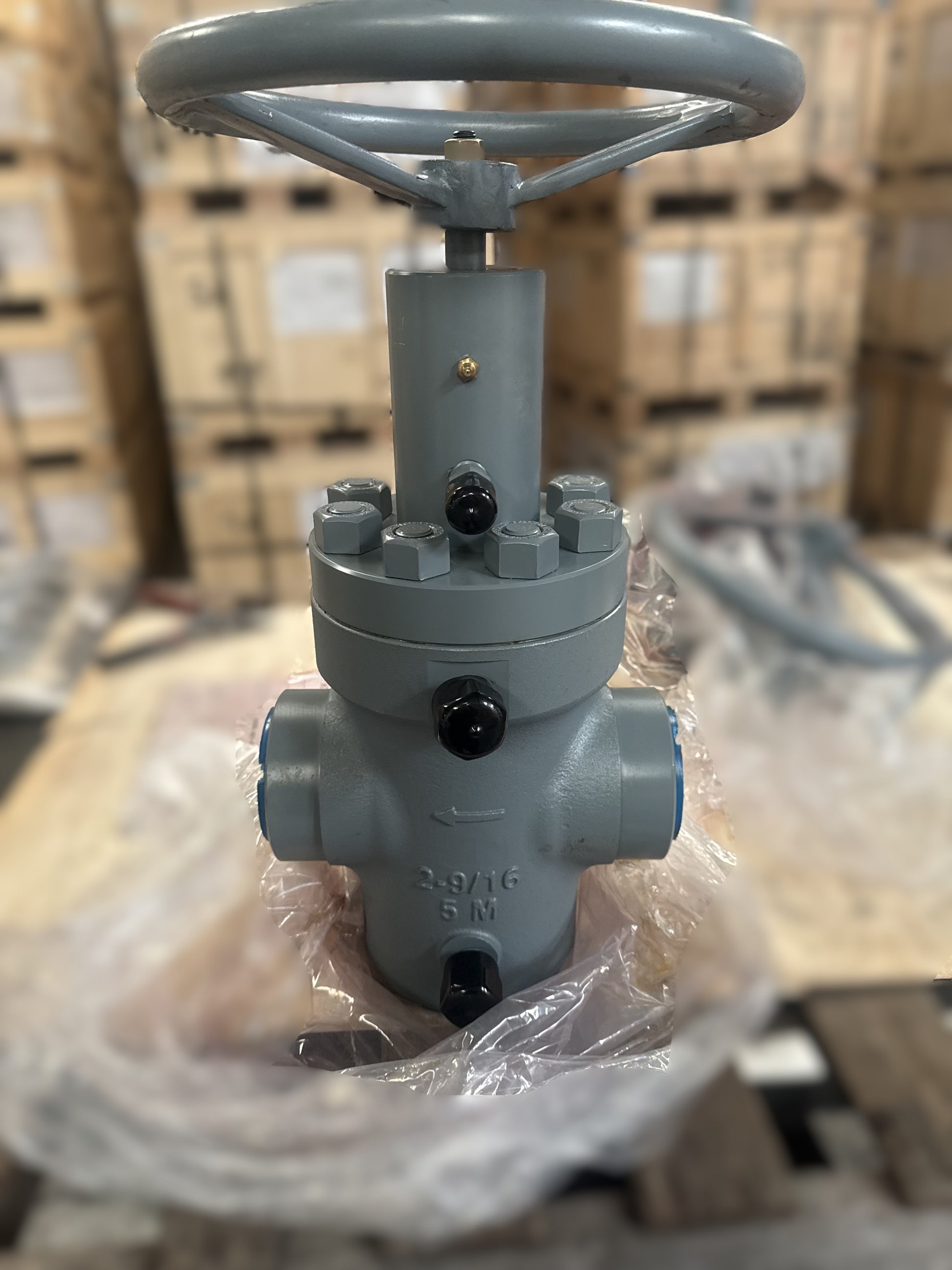

The Blaze Expanding Gate Valve, 2-9/16", 5,000 PSI (5M), WKM-Type with 2-7/8" 8RD EUE threaded ends, is designed for reliable mechanical shutoff in production and surface flowline operations. Its expanding gate mechanism applies positive mechanical force against both upstream and downstream seats, enabling dependable sealing even when line pressure is low — a key advantage in production and surface systems.

Built from forged alloy steel and produced to PSL-2 quality levels, this valve provides consistent performance, enhanced material control, and traceability for field operations. The DD trim option supports standard service applications, including hydrocarbons, water, CO₂, and other non-sour fluids. Threaded 2-7/8" 8RD EUE ends make this valve a practical choice for flowlines, surface piping, and production facilities that rely on threaded connections for quick installation and maintenance.

The manual handwheel (HW) configuration offers controlled and direct actuation, while the expanding gate design provides stable sealing performance across frequent cycles. With rugged construction and service-friendly access, the Blaze 2-9/16" 5M Expanding Gate Valve is a dependable solution for moderate-pressure upstream environments.

Features & Benefits

  • Expanding Gate Mechanism: Provides positive mechanical sealing independent of line pressure.

  • 5,000 PSI Rating (5M): Suitable for moderate-pressure production and flowline operations.

  • 2-7/8" 8RD EUE Ends: Ideal for threaded flowline installations and field maintenance.

  • WKM-Type Design: Proven structure for stable shutoff performance in surface systems.

  • DD Trim: Standard service trim suitable for non-sour fluids and mild CO₂ environments.

  • LU Temperature Option: Supports operation in low-temperature field conditions.

  • PSL-2 Quality Level: Enhanced material documentation, testing, and traceability.

  • Manual Handwheel Operation: Provides reliable, controlled actuation without external power.

  • Forged Alloy Steel Body: Built for durability in production and surface environments.

  • Field-Serviceable: Simple disassembly and maintenance reduce downtime.

Specifications & Technical Details

Detailed Specification Table

Category Specification
Valve Type Expanding Gate Valve
Size 2-9/16"
Pressure Rating 5,000 PSI (5M)
Design Type WKM-Type
Trim Material DD Trim (Standard Service; Non-Sour)
Temperature Class LU (Low Temperature)
End Connections 2-7/8" 8RD EUE Threaded
Quality Level PSL-2
Operation Method Manual (Handwheel)
Body Material Forged Alloy Steel
Service Type Standard Oilfield Service (Non-Sour)
Typical Applications Production, flowlines, injection, well testing
Testing & Compliance PSL-2 testing, NDT, material traceability, pressure testing

Applications

This expanding gate valve is suited for production systems, flowlines, surface pipelines, injection networks, well testing units, and other moderate-pressure upstream environments where 8RD threaded connections are preferred and a mechanical-seal gate valve is required.

Quality Assurance

Each valve meets PSL-2 quality requirements, including hydrostatic pressure testing, functional actuation checks, NDT inspection, and full material traceability to ensure consistent field performance.
