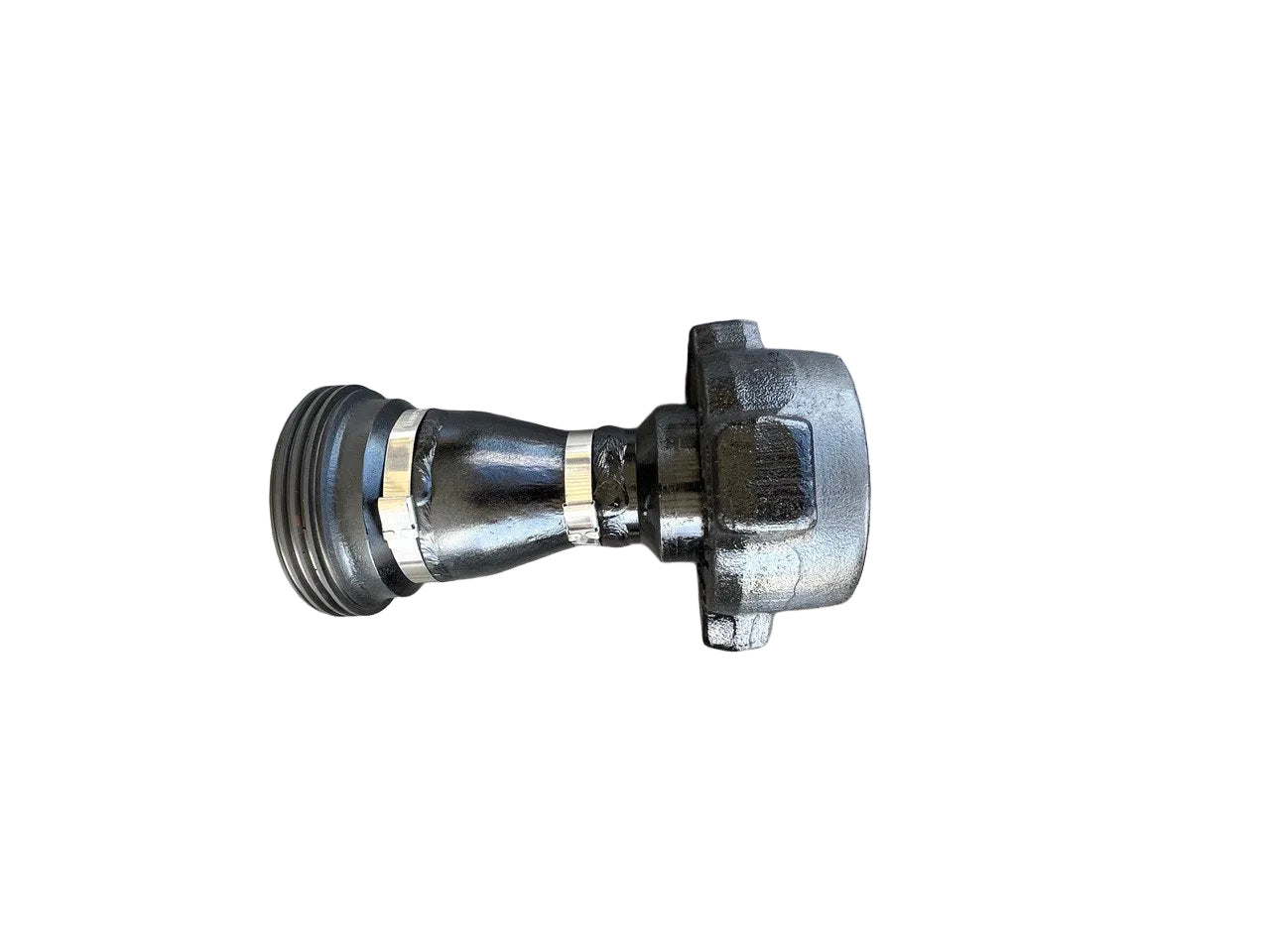

Crossover Adapter – 3" FIG 206 Female (Thread) x 2" FIG 1502 Male (Wing) | Welded, SCH XH

The Crossover Adapter, 3" FIG 206 Female (Thread) x 2" FIG 1502 Male (Wing), is a heavy-duty, fabricated flowline component engineered to safely transition both pipe size and pressure ratings within fluid transfer systems. Utilizing a highly durable Welded Schedule XH (Extra Heavy) pipe construction, this adapter allows field operators to step down from a 3-inch, 2,000 PSI (FIG 206) low-pressure line directly into standard 2-inch, 15,000 PSI (FIG 1502) equipment.

In everyday surface operations, it is frequently necessary to tie high-pressure 2-inch well service iron (like treating iron or choke manifolds) back into lower-pressure 3-inch storage, mixing, or fluid transfer infrastructure. By bridging this significant gap in both connection profile and bore size, this welded adapter eliminates the need to stack multiple threaded swages and bell reducers, significantly streamlining the rig-up process and minimizing potential leak paths.

The 3" FIG 206 end provides a precision-machined female thread (sub) connection designed to safely seat a standard 206 male wing profile. Conversely, the 2" FIG 1502 end features a standard high-pressure male wing configuration complete with a wingnut for fast, hammer-up installation into 15K equipment.

Note: While the 2" FIG 1502 connection is nominally rated for 15,000 PSI and the SCH XH pipe provides substantial wall thickness, the overall working pressure of this welded crossover assembly is strictly limited by the 3" FIG 206 connection, resulting in a maximum system pressure rating of 2,000 PSI (2K CWP).

Features & Benefits

• Welded SCH XH Construction: Fabricated using premium Schedule XH (Extra Heavy) pipe for superior structural integrity, vibration resistance, and longevity in abrasive fluid transfer applications.

• Dual Transition (Size & Profile): Seamlessly steps down from a 3-inch pipe diameter to a 2-inch pipe diameter while transitioning from a 206 profile to a 1502 profile in one single assembly.

• Female x Male Configuration: Features a precision 206 threaded sub on one end and a heavy-duty 1502 wingnut on the other, ideal for direct integration into existing low-to-high pressure transitions.

• Reduced Leak Paths: Replacing hazardous "stacked" threaded fittings with a single welded assembly drastically reduces potential failure points.

• Fast Field Installation: The male wingnut end allows for rapid, secure makeup using standard rig hammers, accelerating rig-up and rig-down times.

Specifications & Technical Details

Applications

This welded 3" x 2" crossover adapter is widely used in surface operations where transitioning from 3-inch, 2,000 PSI low-pressure systems into 2-inch, 15,000 PSI manifolds is required. Typical applications include tying 2-inch treating iron into 3-inch mud tank suction lines, fluid return lines, cement mixing headers, water transfer manifolds, and general low-pressure flowline operations where high-pressure iron interfaces with low-pressure storage.

Quality Assurance

All our welded crossover adapters are fabricated by certified welders using premium alloy steel and subjected to strict quality control processes. Each fabricated fitting undergoes rigorous weld inspection and hydrostatic pressure testing prior to shipment to ensure absolute safety, shell integrity, and seal performance under working loads. Full material traceability is available to guarantee compliance with API guidelines.
