Flowline Cross – 2" FIG 1502 3-Way Female (Thread) x 1-Way Male (Wing) | 9/16" Autoclave Port

The Flowline Cross, 2" FIG 1502 featuring three Female (Thread) ends, one Male (Wing) end, and an integrated 9/16" Autoclave Port, is a highly specialized, ultra-heavy-duty forged steel manifold component. Engineered for extreme 15,000 PSI operations, this vital fitting allows field operators to efficiently branch a 2-inch flowline into three directions, or converge three lines into one, while simultaneously providing direct, high-pressure instrumentation access.

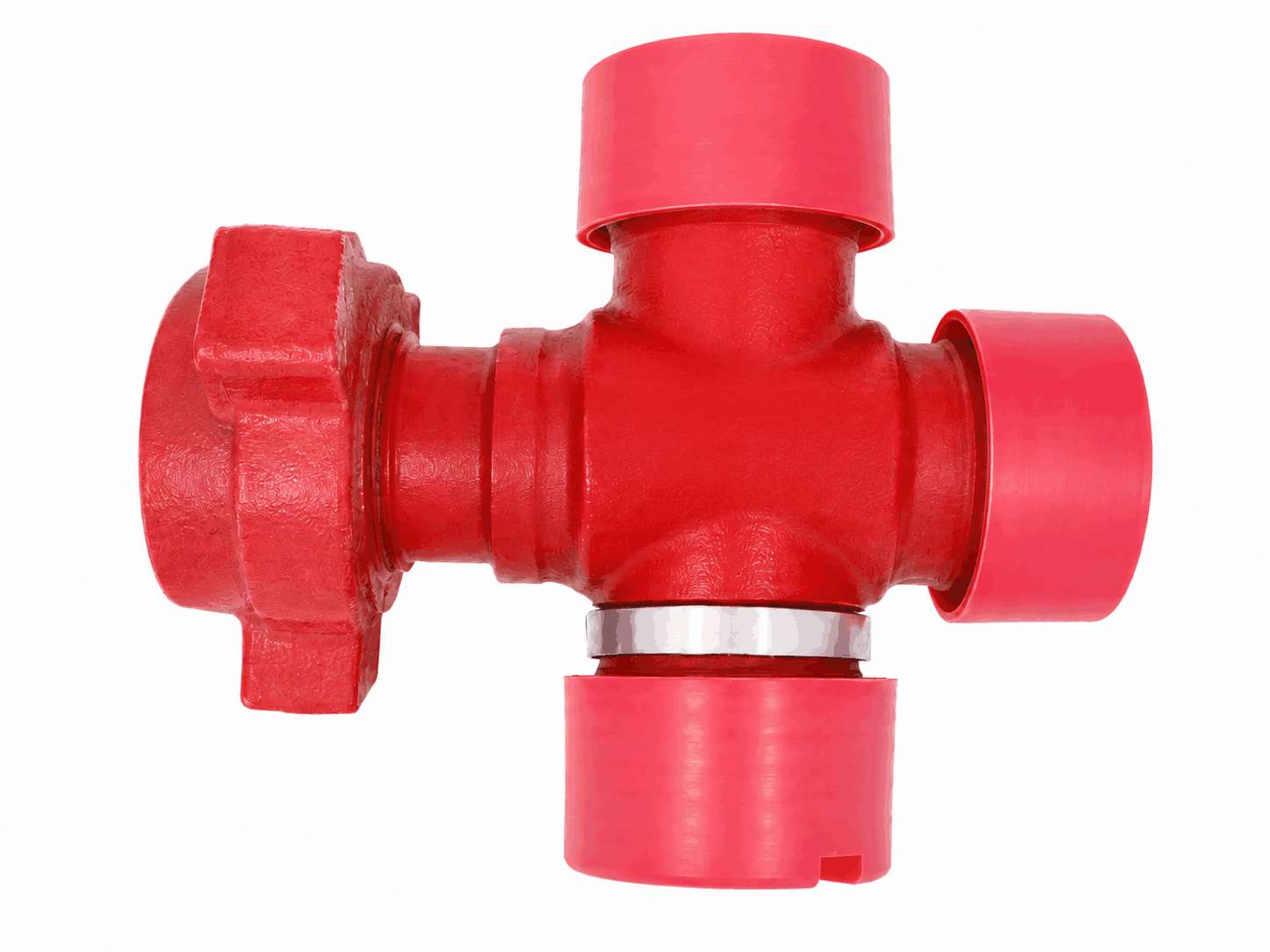

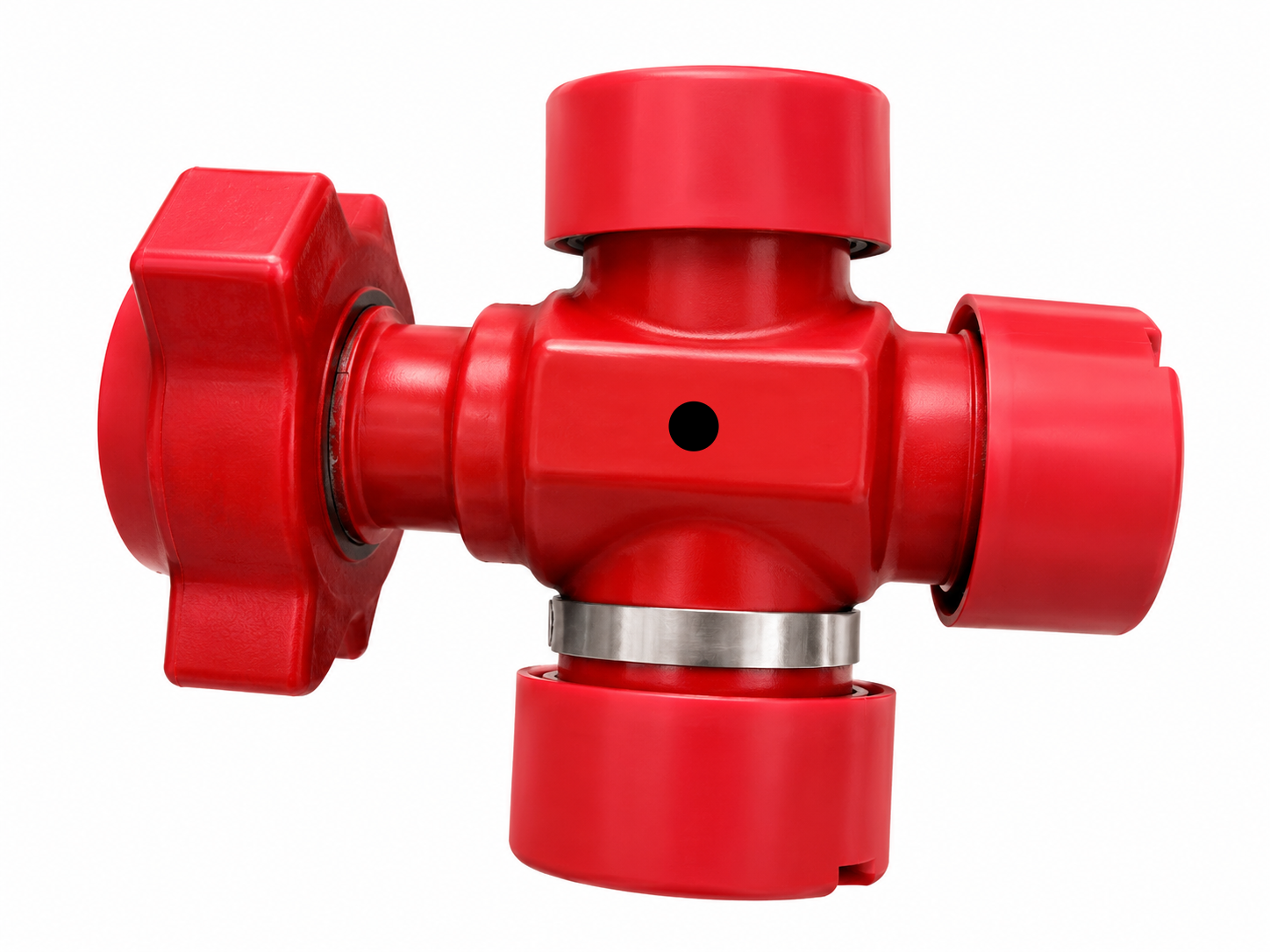

This cross features a highly specific FxFxFxM (3 Female x 1 Male) primary configuration. Three of the main ports are equipped with precision-machined female thread (sub) connections designed to safely seat standard 2-inch 1502 male wing profiles. The fourth main port features a heavy-duty male wing configuration complete with a wingnut for fast, secure hammer-up installation into existing female equipment.

Crucially, this model is equipped with a precision-machined 9/16" Autoclave port. This dedicated high-pressure instrumentation port allows operators to safely install pressure gauges, sensors, pressure transducers, or bleed-off valves directly into the body of the cross. By incorporating this gauge port directly into the four-way manifold, operators can achieve real-time pressure monitoring and data acquisition (DAQ) without the need to rig up additional dedicated gauge subs or spacer spools. This significantly reduces the overall rig-up footprint, minimizes potential leak paths, and streamlines the pumping system.

Features & Benefits

• Integrated 9/16" Autoclave Port: Safely accommodates high-pressure gauges, sensors, or bleed valves directly on the cross body, eliminating the need for separate gauge subs.

• Four-Way Flow Distribution: Efficiently splits or combines high-pressure fluid streams across four intersecting ports, offering immense flexibility for complex, monitored rig-ups.

• FxFxFxM Configuration: Features three female (thread/sub) ports and one male (wing) port, allowing for seamless integration into specifically engineered piping layouts.

• Full 15K CWP Capacity: Maintains an uninterrupted high-pressure rating of 15,000 PSI (15K CWP) across the entire fitting, built for extreme oilfield environments.

• Reduced Leak Paths: Single-piece integral forged construction drastically lowers operational risk by eliminating the need to stack multiple tee blocks and gauge adapters.

Specifications & Technical Details

Applications

This 2-inch Instrumented Flowline Cross is widely used in high-pressure surface operations requiring both complex fluid distribution and real-time pressure monitoring. Typical applications include building massive frac manifolds, data acquisition (DAQ) points, high-rate well testing packages, choke and kill manifolds, pump discharge headers, and fluid routing operations where inline gauges or bleed valves are mandatory.

Quality Assurance

All our flowline crosses are manufactured from premium forged alloy steel and subjected to strict quality control processes. Each fitting undergoes rigorous dimensional inspection, non-destructive testing (NDT), and hydrostatic pressure testing prior to shipment to ensure absolute safety, shell integrity, and seal performance under maximum working loads. Full material traceability is available to guarantee compliance with API guidelines.
