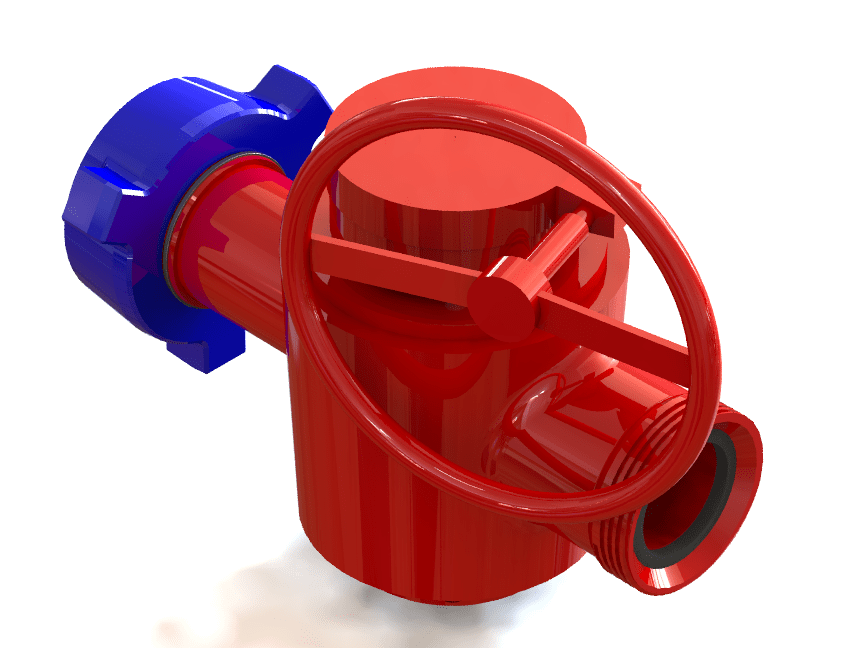

4" x 4" 1002 Gear Operated Plug Valve – High Pressure Oilfield Flow Control

The 4" x 4" 1002 Gear Operated Plug Valve is designed for reliable flow control in high-pressure oilfield applications. Rated up to 10,000 PSI, this valve delivers dependable performance in demanding environments across upstream, midstream, and downstream operations.

Equipped with a gear-operated mechanism, the valve allows controlled and smooth operation with reduced manual effort, making it suitable for high-pressure systems where precise actuation is required. The high tensile steel body combined with stainless steel trim ensures durability, corrosion resistance, and long service life in harsh oilfield conditions.

The metal-to-metal sealing design provides secure shutoff and leak-resistant performance, maintaining system integrity during operation. Its compact and robust construction makes it ideal for integration into complex pipeline and wellhead systems.

Key Features

• Gear operated mechanism for precise and controlled valve operation
• Rated up to 10,000 PSI for high-pressure applications
• High tensile steel body for strength and durability
• Stainless steel trim for corrosion resistance
• Metal-to-metal sealing for reliable shutoff
• Smooth operation with reduced manual effort
• Compact and robust design for oilfield environments
• Factory tested for leak-proof performance

Technical Specifications

• Size: 4" x 4"
• Model: 1002 Gear Operated Plug Valve
• Working Pressure: Up to 10,000 PSI
• Body Material: High tensile steel
• Trim Material: Stainless steel
• Operation: Gear operated
• Seal Type: Metal-to-metal
• Weight: Approx. 348 lbs
• Length: Approx. 21 inches
• Temperature Range: Suitable for oilfield conditions
• Testing: 100% factory leak-tested

Applications

• High-pressure oil and gas production systems
• Wellhead and drilling flow control
• Flowback and fracturing operations
• Pipeline isolation and maintenance
• Crude oil and natural gas handling systems
• Upstream, midstream, and downstream operations

Frequently Asked Questions

What is a gear operated plug valve?
A gear operated plug valve uses a gear mechanism to reduce the effort required to open or close the valve, allowing controlled operation in high-pressure systems.

What pressure rating does this valve support?
This valve is rated for pressures up to 10,000 PSI depending on application conditions.

Where is a 1002 plug valve used?
It is commonly used in oilfield pipelines, wellheads, and production systems requiring reliable high-pressure flow control.

What are the benefits of metal-to-metal sealing?
Metal-to-metal sealing provides durable, leak-resistant performance and is suitable for high-pressure and high-temperature environments.
